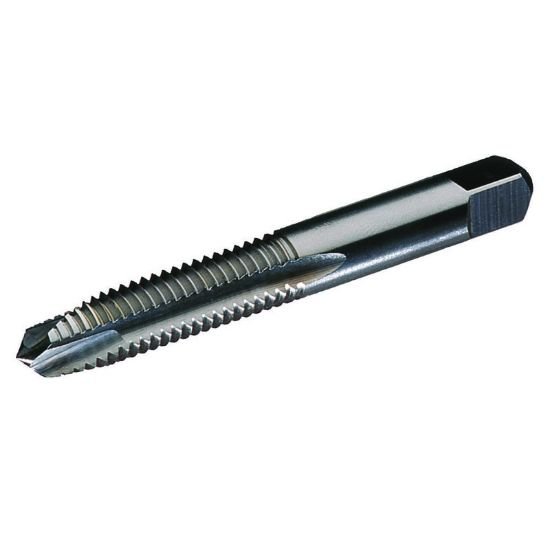

Picture of Widia/Kennametal 13193 1/2-20.00TPI Hand Tap Plug 3.0P-5.5P HSS Steam Oxide

Widia/Kennametal 13193 1/2-20.00TPI Hand Tap Plug 3.0P-5.5P HSS Steam Oxide

Part Number: WID13193

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1135553
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 0.3670 9.32MM
Thread Limit H3/GH3
Cutter Type Taping
Tap Square 0.2750
Length Type STANDARD
Performance Rating General Performance
Tap Style Hand Tap
Overall Length 3.3740 85.70MM
Machine Side (Toolpost) TAP0.276x0.367
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 3
Shipping State OHIO
Cutting Edge Material HSS
Tool Material Steel
Coating Steam Oxide
Coolant Thru Non Coolant
Tap Type Plug
Flute Direction Right
Thread Type NF/UNF/UNEF
Made In USA No
Thread Size 1/2"
Thread Pitch 20.00TPI
Tap Chamfer 3.0P-5.5P
