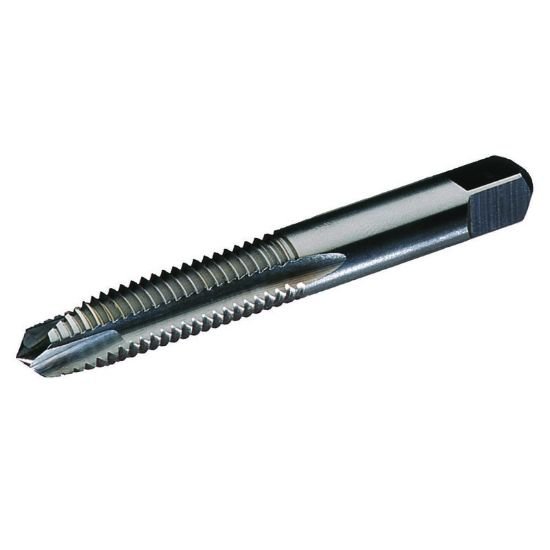

Picture of Widia/Kennametal 13111 No.0-80.00TPI Hand Tap Plug 3.0P-5.5P HSS Steam Oxide

Widia/Kennametal 13111 No.0-80.00TPI Hand Tap Plug 3.0P-5.5P HSS Steam Oxide

Part Number: WID13111

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1196945
Vendor: Sussex Tool and Supply
$0.00
WIDIA 2750325 No.0x80.00TPI Hand Tap Plug 3.0P-5.5P HSS Steam Oxide H3/GH3 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating Steam Oxide
Overall Length 1.6250 41.28MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 80.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size No.0
Thread Limit H3/GH3
Tap Style Hand Tap
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0469 1.19MM - 0.0500 1.27MM
Tap Square 0.1100
Tap Chamfer 3.0P-5.5P
