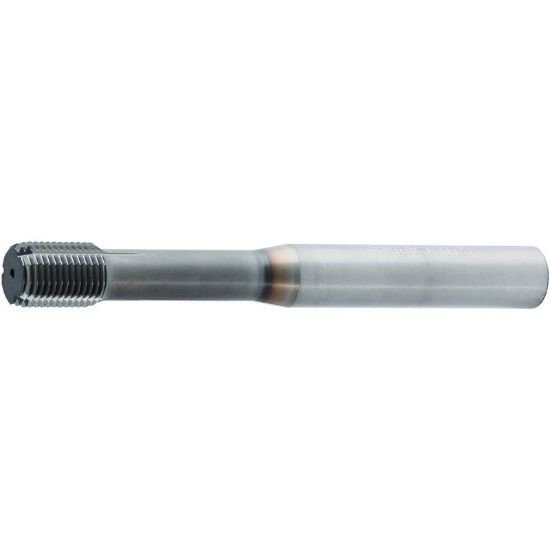

Picture of Widia/Kennametal 12907 M5-0.80mm Roll Form Bottoming 1.0P-2.0P Carbide TiCN

Widia/Kennametal 12907 M5-0.80mm Roll Form Bottoming 1.0P-2.0P Carbide TiCN

Part Number: WID12907

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169438
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 3527627 M5x0.80MM Roll Form Bottoming 1.0P-2.0P Carbide TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, <40HRC Steel, Copper
Coating TICN
Overall Length 2.3620 59.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.80MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M5
Thread Limit 6H
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Tap Square 0.1500
Tap Chamfer 1.0P-2.0P
