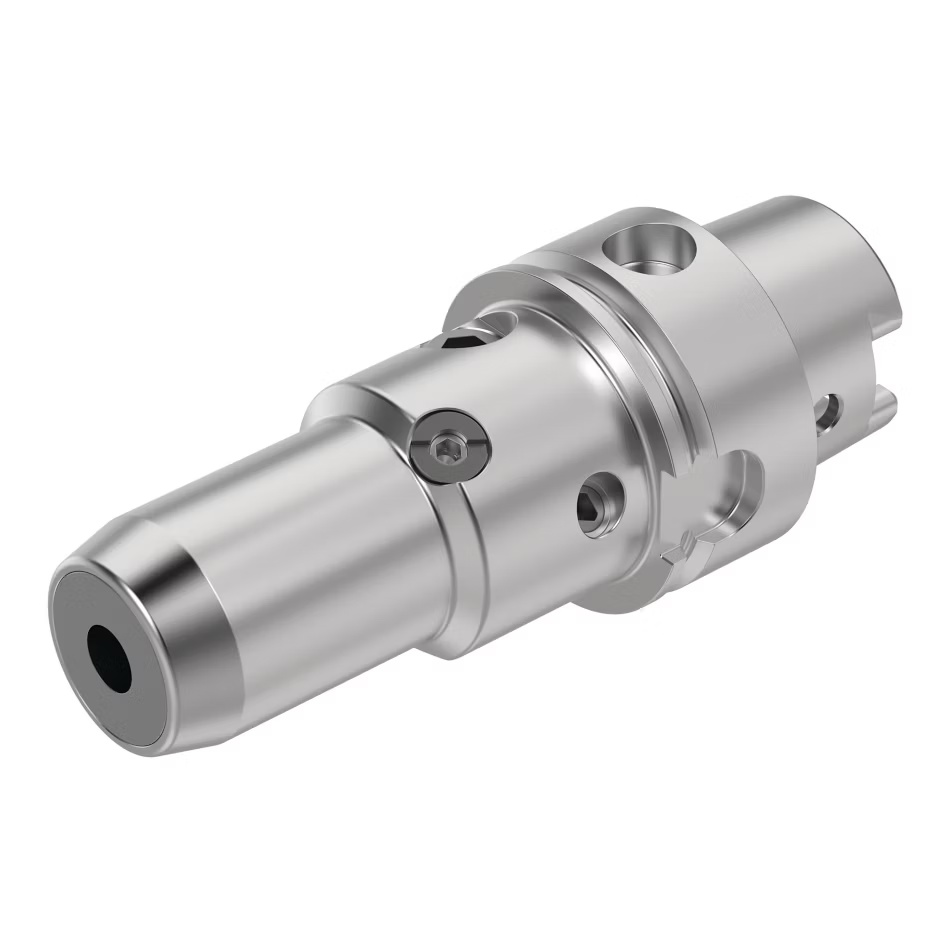

Picture of Widia/Kennametal 1246567 HSK100A Hydraulic Chuck .7500 19.05 - 3/4 4.2500 Gauge Length

Widia/Kennametal 1246567 HSK100A Hydraulic Chuck .7500 19.05 - 3/4 4.2500 Gauge Length

Part Number: WID1246567 ISO: HSK100AHC075425 ANSI:HSK100AHC075425

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1440101
Vendor: Sussex Tool and Supply
$1,010.24
Widia/Kennametal HSK100A Hp Hydro Chuck Ø3/4 X Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 100A
Overall Length 6.2188 157.96MM
Coolant Thru Thru Coolant
Tool Dia 1.5190 38.58MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical0.7500
Output Type Cylindrical
Output 0.7500 19.05 - 3/4
CNC Type Tool Hydraulic Chuck
CNC Conection HSK100A
CNC Out Put CYLINDRICAL0.7500
Gauge Length 4.2500
Max RPM 15000
Tool Over Hang 2.1260
Balanced To 000 RPM at G6.3, 15
