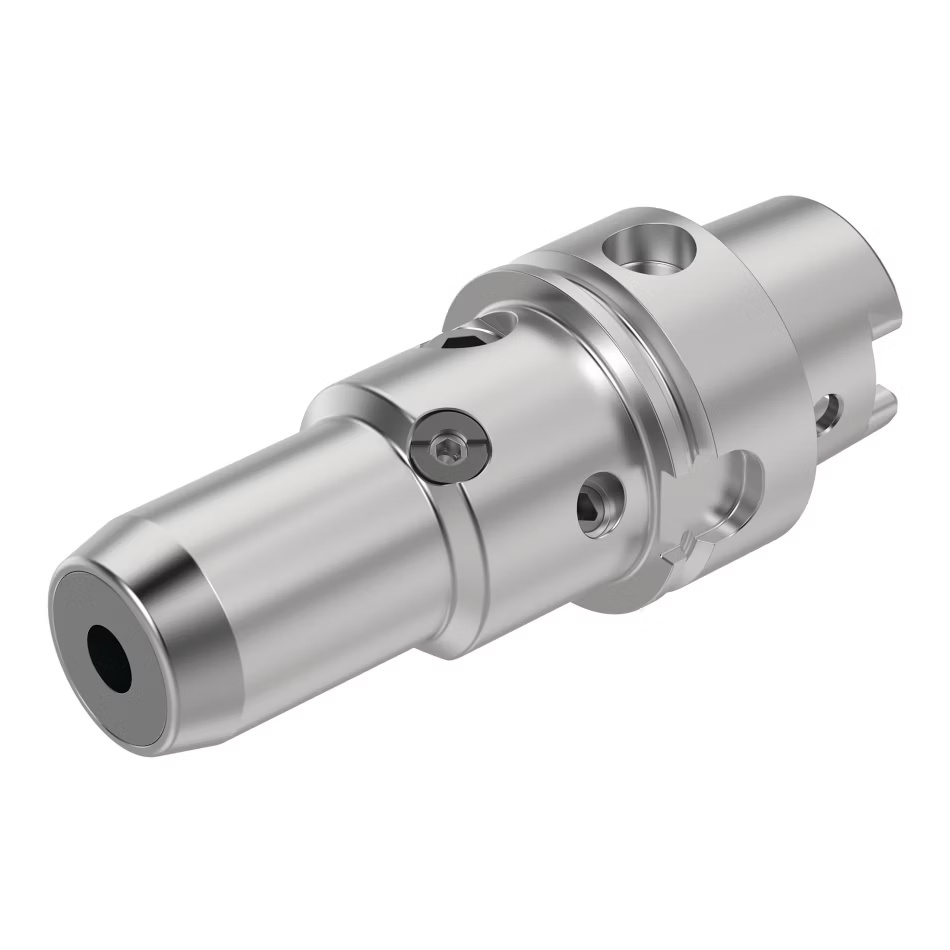

Picture of Widia/Kennametal 1246557 HSK100A Hydraulic Chuck .3750 9.53mm - 3/8 3.5000 Gauge Length

Widia/Kennametal 1246557 HSK100A Hydraulic Chuck .3750 9.53mm - 3/8 3.5000 Gauge Length

Part Number: WID1246557 ISO: HSK100AHC038350 ANSI:HSK100AHC038350

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1440098
Vendor: Sussex Tool and Supply
$1,109.20
Widia/Kennametal HSK100A Hp Hydro Chuck Ø3/8 X Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 100A
Overall Length 5.4685 138.90MM
Coolant Thru Thru Coolant
Tool Dia 1.5190 38.58MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical0.3750
Output Type Cylindrical
Output 0.3750 9.53MM - 3/8
CNC Type Tool Hydraulic Chuck
CNC Conection HSK100A
CNC Out Put CYLINDRICAL0.3750
Gauge Length 3.5000
Max RPM 15000
Tool Over Hang 1.3780
Balanced To 000 RPM at G6.3, 15
