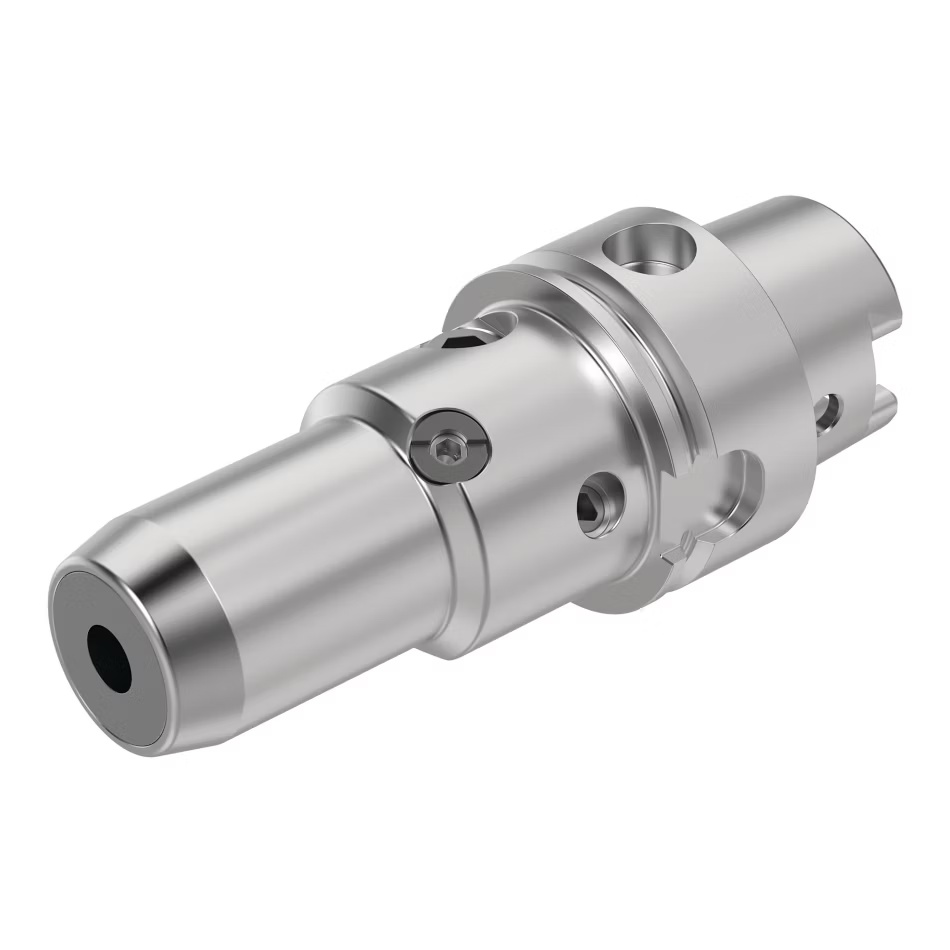

Picture of Widia/Kennametal 1246536 HSK63A Hydraulic Chuck .0000 25.40mm 4.7500 Gauge Length

Widia/Kennametal 1246536 HSK63A Hydraulic Chuck .0000 25.40mm 4.7500 Gauge Length

Part Number: WID1246536 ISO: HSK63AHC100475 ANSI:HSK63AHC100475

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1440096
Vendor: Sussex Tool and Supply
$943.06
Widia/Kennametal HSK63A Hp Hydro Chuck Ø1.0 X 4 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 63A
Overall Length 6.0080 152.60MM
Coolant Thru Thru Coolant
Tool Dia 1.5190 38.58MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical1.0000
Output Type Cylindrical
Output 1.0000 25.40MM
CNC Type Tool Hydraulic Chuck
CNC Conection HSK63A
CNC Out Put CYLINDRICAL1.0000
Gauge Length 4.7500
Max RPM 15000
Tool Over Hang 2.0080
Balanced To 000 RPM at G6.3, 15
