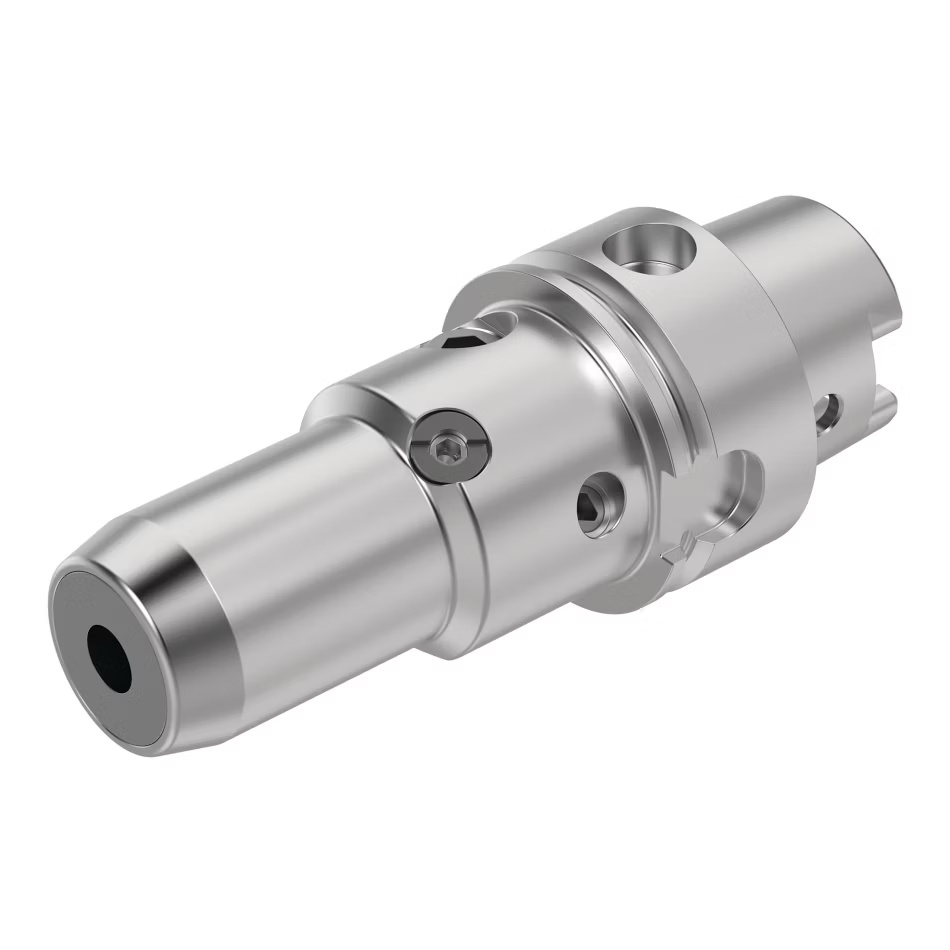

Picture of Widia/Kennametal 1246534 HSK63A Hydraulic Chuck .7500 19.05 - 3/4 4.0000 Gauge Length

Widia/Kennametal 1246534 HSK63A Hydraulic Chuck .7500 19.05 - 3/4 4.0000 Gauge Length

Part Number: WID1246534 ISO: HSK63AHC075400 ANSI:HSK63AHC075400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1440095
Vendor: Sussex Tool and Supply
$905.98
Widia/Kennametal HSK63A Hp Hydro Chuck Ø3/4 X 4 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 63A
Overall Length 5.2600 133.60MM
Coolant Thru Thru Coolant
Tool Dia 1.5180 38.55MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical0.7500
Output Type Cylindrical
Output 0.7500 19.05 - 3/4
CNC Type Tool Hydraulic Chuck
CNC Conection HSK63A
CNC Out Put CYLINDRICAL0.7500
Gauge Length 4.0000
Max RPM 15000
Tool Over Hang 2.2835
Balanced To 000 RPM at G6.3, 15
