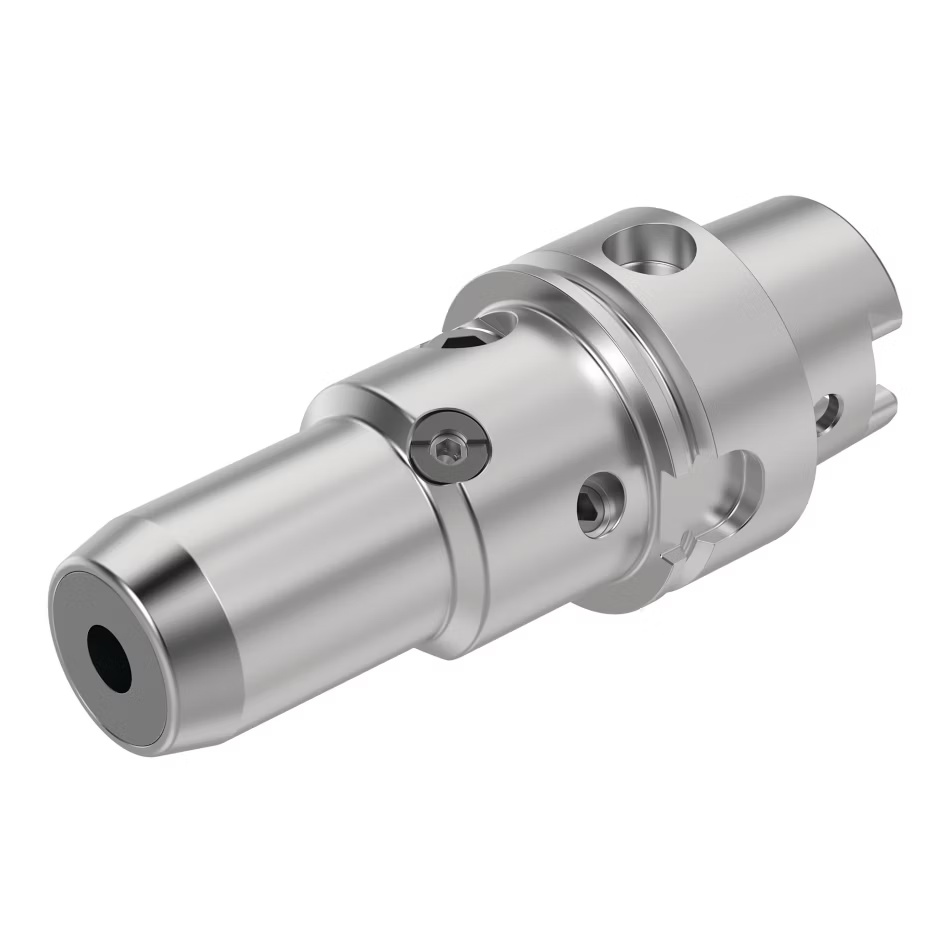

Picture of Widia/Kennametal 1246532 HSK63A Hydraulic Chuck .6250 15.88mm - 5/8 3.7500 Gauge Length

Widia/Kennametal 1246532 HSK63A Hydraulic Chuck .6250 15.88mm - 5/8 3.7500 Gauge Length

Part Number: WID1246532 ISO: HSK63AHC062375 ANSI:HSK63AHC062375

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1440094
Vendor: Sussex Tool and Supply
$905.98
Widia/Kennametal HSK63A Hp Hydro Chuck Ø5/8 X 3 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 63A
Overall Length 5.0079 127.20MM
Coolant Thru Thru Coolant
Tool Dia 1.5180 38.55MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical0.6250
Output Type Cylindrical
Output 0.6250 15.88MM - 5/8
CNC Type Tool Hydraulic Chuck
CNC Conection HSK63A
CNC Out Put CYLINDRICAL0.6250
Gauge Length 3.7500
Max RPM 15000
Tool Over Hang 2.0276
Balanced To 000 RPM at G6.3, 15
