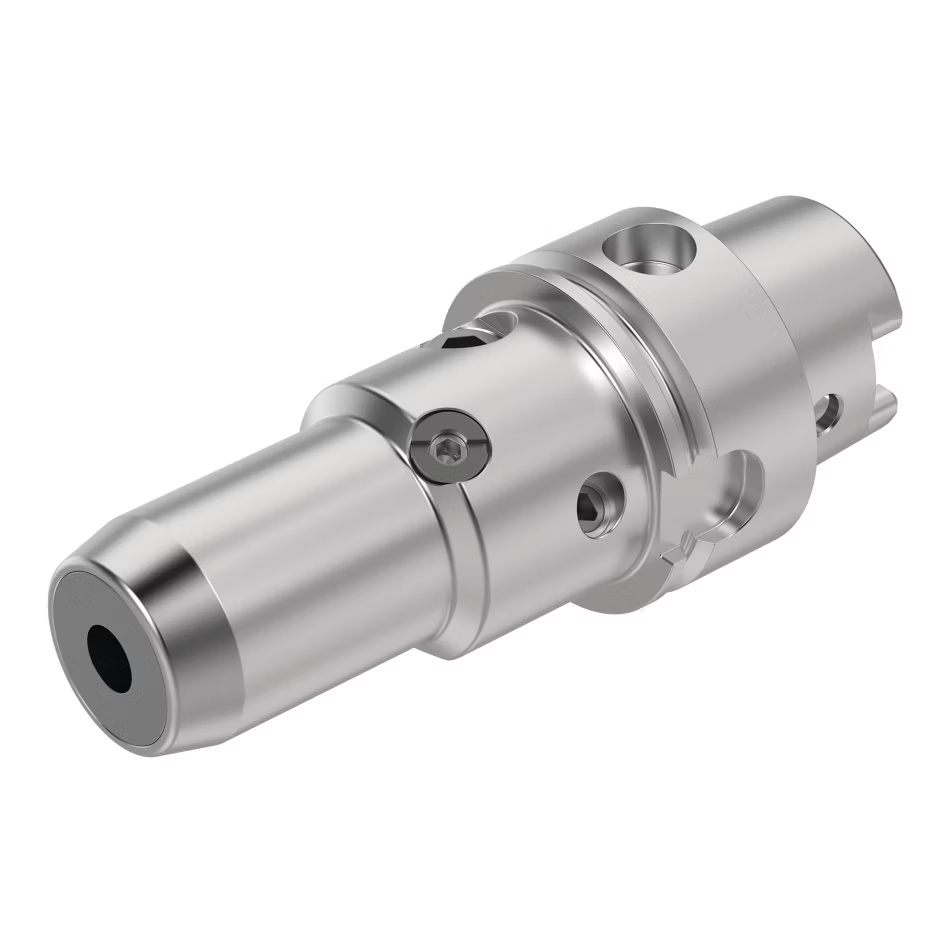

Picture of Widia/Kennametal 1246528 HSK63A Hydraulic Chuck .5000 12.70mm - 1/2 3.5000 Gauge Length

Widia/Kennametal 1246528 HSK63A Hydraulic Chuck .5000 12.70mm - 1/2 3.5000 Gauge Length

Part Number: WID1246528 ISO: HSK63AHC050350 ANSI:HSK63AHC050350

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1440093
Vendor: Sussex Tool and Supply
$905.98
Widia/Kennametal HSK63A Hp Hydro Chuck Ø1/2 X 3 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 63A
Overall Length 4.7559 120.80MM
Coolant Thru Thru Coolant
Tool Dia 1.5180 38.55MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical0.5000
Output Type Cylindrical
Output 0.5000 12.70MM - 1/2
CNC Type Tool Hydraulic Chuck
CNC Conection HSK63A
CNC Out Put CYLINDRICAL0.5000
Gauge Length 3.5000
Max RPM 15000
Tool Over Hang 1.7520
Balanced To 000 RPM at G6.3, 15
