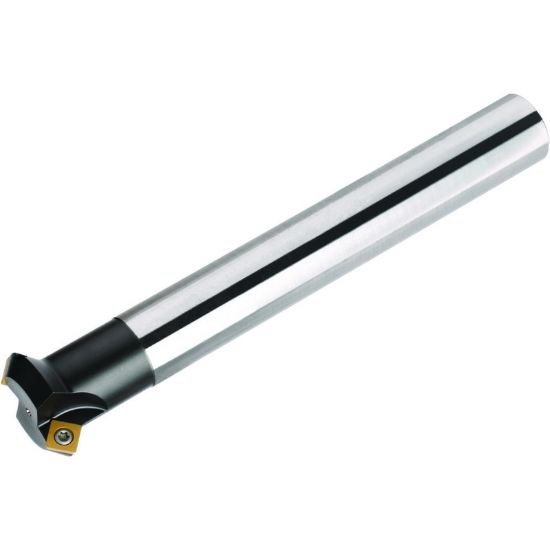

Picture of Widia/Kennametal 12292550400 45.0° Milling Cutter 1.134 Cutter Diameter Weldon 0.629

Widia/Kennametal 12292550400 45.0° Milling Cutter 1.134 Cutter Diameter Weldon 0.629

Part Number: WID2022634 ISO: 12292550400 ANSI:12292550400
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1018683
Vendor: Sussex Tool and Supply
$195.17

Description

WIDIA 2022634 Square 45.0°, Chamfer Mill, Back Chamfer End Mill Weldon 0.6299 Positive 1.1340 28.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 1.1340 28.80MM
Insert Size Ic 12 "43"
Neck Dia 0.61
Geometry & Angles
Cutting Edge Angle 45.0°
Chamfer Angle 45.0°
Performance & Capacity
Cut Dia Min 0.6300 16.00MM
Depth Of Cut Max 0.2520
Materials & Finish
Tool Material Steel
