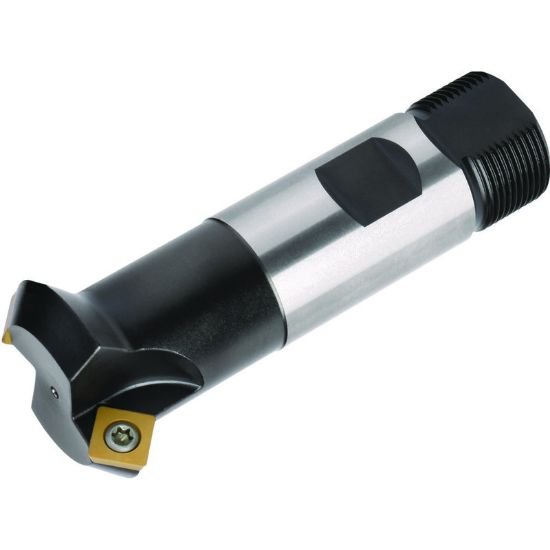

Picture of Widia/Kennametal 12292511000 45.0° Milling Cutter 1.764 Cutter Diameter End Mill 1.259

Widia/Kennametal 12292511000 45.0° Milling Cutter 1.764 Cutter Diameter End Mill 1.259

Part Number: WID2022630 ISO: 12292511000 ANSI:12292511000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1018679
Vendor: Sussex Tool and Supply
$308.37

Description

WIDIA 2022630 Square 45.0°, Chamfer Mill, Back Chamfer End Mill Weldon 1.2598 Positive 1.7640 44.81MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 3
Tool Dia 1.7640 44.81MM
Insert Size Ic 12 "43"
Neck Dia 1.24
Geometry & Angles
Cutting Edge Angle 45.0°
Chamfer Angle 45.0°
Performance & Capacity
Cut Dia Min 1.2600 32.00MM
Depth Of Cut Max 0.2520
Materials & Finish
Tool Material Steel
