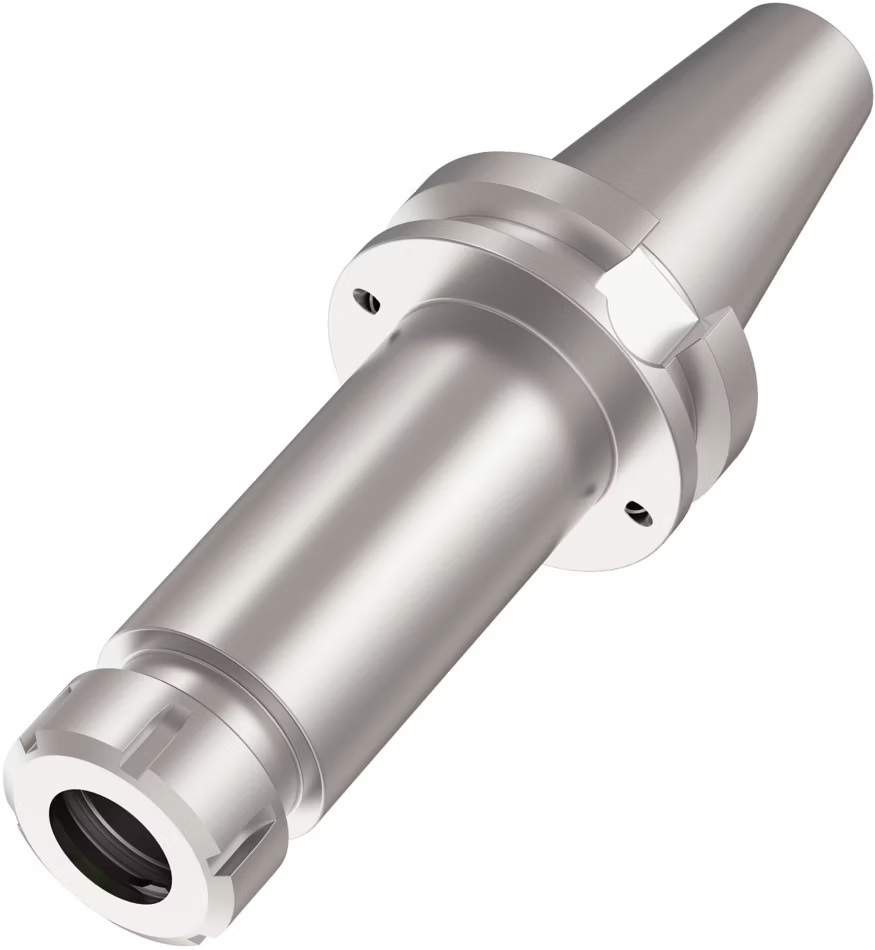

Picture of Widia/Kennametal 1187371 BT50 Collet Chuck ER40 5.9055 Gauge Length

Widia/Kennametal 1187371 BT50 Collet Chuck ER40 5.9055 Gauge Length

Part Number: WID1187371 ISO: BT50BER40150M ANSI:BT50BER40150M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1438281
Vendor: Sussex Tool and Supply
$292.28
Widia/Kennametal Collet Chuck BT50 40ER 3-26 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 50
Overall Length 9.9100 251.71MM
Coolant Thru Thru Coolant
Tool Dia 1.3370 33.95MM
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER40
Output Type ER
Output 40
CNC Type Tool Collet Chuck
CNC Conection BT50
CNC Out Put ER40
Gauge Length 5.9055
Max RPM 20000
Tool Over Hang 5.1555
Nose Dia/Nut Dia 2.4803
Balanced To 20, 000 RPM at G6.3
