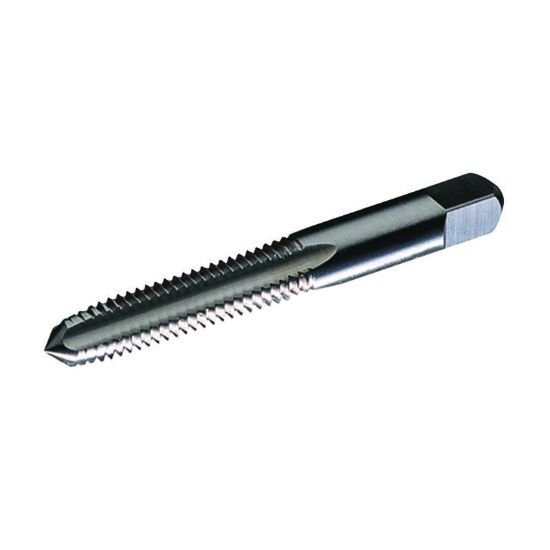

Picture of Widia/Kennametal 11672 1-12.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Widia/Kennametal 11672 1-12.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Part Number: WID11672

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169216
Vendor: Sussex Tool and Supply
$0.00
WIDIA 2750878 1"x12.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated 2B NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel
Overall Length 5.1250 130.18MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 12.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1"
Thread Limit 2B
Tap Style Hand Tap
Tap Type Taper
Dimension Standard ANSI/ANSI
Tap Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Tap Square 0.6000
Tap Chamfer 7.0P-10.0P
