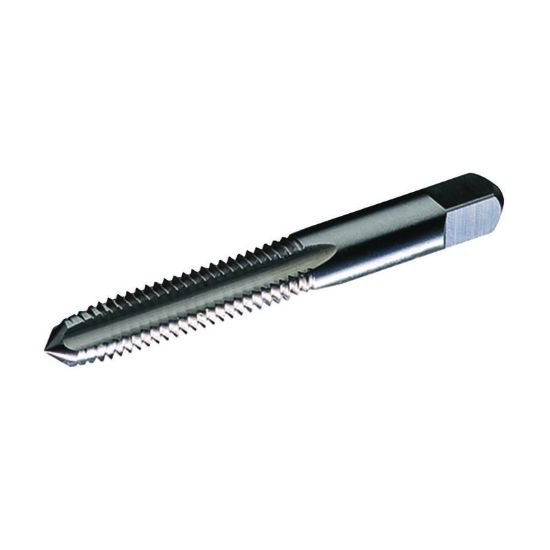

Picture of Widia/Kennametal 11603 1/4-28.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated

Widia/Kennametal 11603 1/4-28.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated

Part Number: WID11603

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169285
Vendor: Sussex Tool and Supply
$0.00
WIDIA 2751011 1/4"x28.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated 2B NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 28.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1/4"
Thread Limit 2B
Tap Style Hand Tap
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Tap Square 0.1910
Tap Chamfer 3.0P-5.5P
