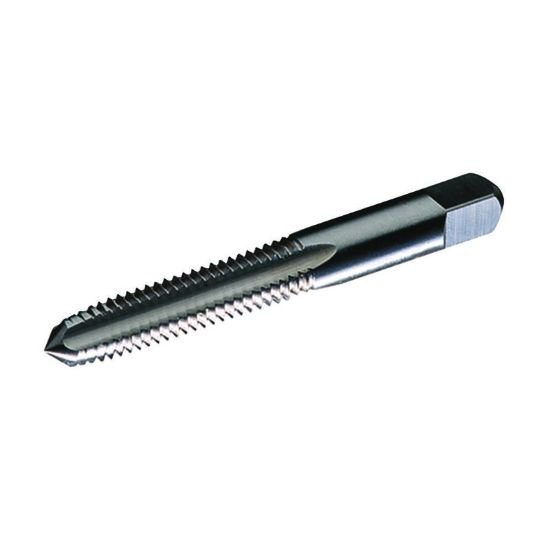

Picture of Widia/Kennametal 11554 No.10-32.00Tpi Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Widia/Kennametal 11554 No.10-32.00Tpi Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Part Number: WID11554

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1002734
Vendor: Sussex Tool and Supply
$80.96

WIDIA/KENNAMETAL hand tap with 32.00 TPI for NF UNF UNEF threads. Right flute. HSS uncoated. Tap collet connection. Made in USA no.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Thread Type: NF/UNF/UNEF
  • Machine Side (Toolpost) Connection Type: Tap Collet
  • Machine Side (Toolpost): TAP0.152x0.194

Grades & Coatings

  • Alternate Description: WIDIA 2751043 No.10x32.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated 2B NF/UNF/UNEF

Other Details

  • Brand: WIDIA/KENNAMETAL
  • Shipping State: OHIO
  • Made In Usa: No
  • Flute Direction: Right
  • Type Of Tool: Tap

Technical Overview

What It Does

Creates threads using a hand tap. Bottoms threads in 1.0P to 2.0P range. Works with NF/UNF/UNEF thread types.

Composition

Steel tool material. Uncoated surface. HSS type.

Typical Uses

Used in hand tapping operations. Fits tap collet TAP0.152x0.194. Operates with right flute direction.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSS
Tool Material Steel
Machine Side (Toolpost) TAP0.152x0.194
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 2.3740 60.30MM
Shank Or Pilot Diameter 0.1940 4.93MM
Coolant Thru Non Coolant
Flutes Or Inserts 4
Type of Tool Tap
Length Type Standard
Performance Rating General Performance
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Flute Direction Right
Thread Size No.10
Tap Style Hand Tap
Tap Type Bottoming
Thread Limit 2B
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Tap Chamfer 1.0P-2.0P
