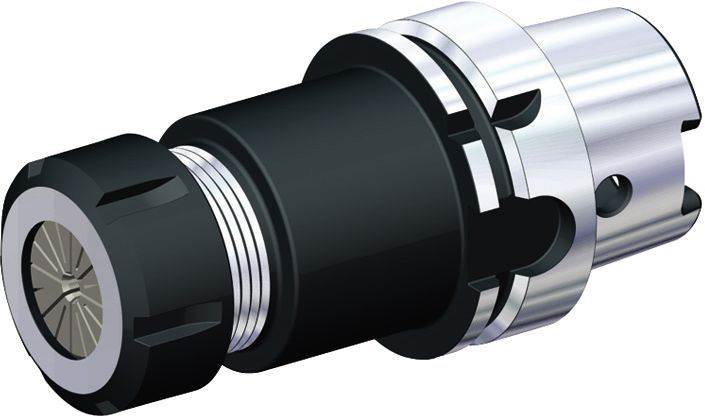

Picture of Widia/Kennametal 1086585 HSK100A Collet Chuck ER40 4.7244 Gauge Length

Widia/Kennametal 1086585 HSK100A Collet Chuck ER40 4.7244 Gauge Length

Part Number: WID1086585 ISO: HSK100AER40120M ANSI:HSK100AER40120M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1439913
Vendor: Sussex Tool and Supply
$664.96
Widia/Kennametal Er Collet Chuck HSK100A 40ER Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 100A
Overall Length 6.6890 169.90MM
Coolant Thru Thru Coolant
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER40
Output Type ER
Output 40
CNC Type Tool Collet Chuck
CNC Conection HSK100A
CNC Out Put ER40
Gauge Length 4.7244
Max RPM 20000
Tool Over Hang 3.5842
Nose Dia/Nut Dia 2.4803
Balanced To 20, 000 RPM at G6.3
