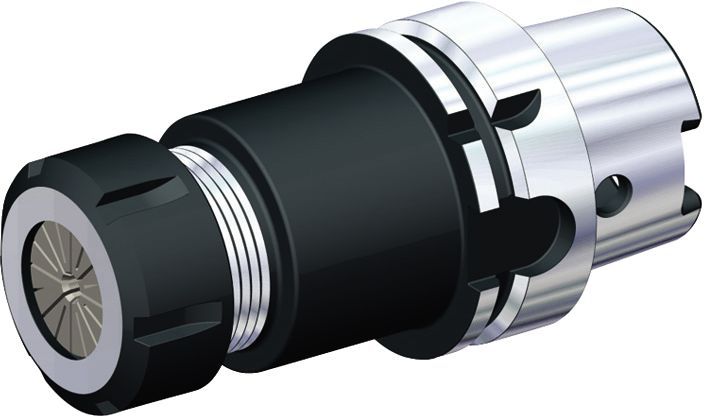

Picture of Widia/Kennametal 1086562 HSK100A Collet Chuck ER20 3.9370 Gauge Length

Widia/Kennametal 1086562 HSK100A Collet Chuck ER20 3.9370 Gauge Length

Part Number: WID1086562 ISO: HSK100AER20100M ANSI:HSK100AER20100M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1439909
Vendor: Sussex Tool and Supply
$529.35

Description

Widia/Kennametal Er Collet Chuck HSK100A 20ER Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Dimensions & Sizing
Overall Length 5.9016 149.90MM
Tool Dia 1.5000 38.10MM - 1-1/2
Gauge Length 3.9370
Tool Over Hang 2.5591
Nose Dia/Nut Dia 1.3780
Performance & Capacity
Output 20
Max RPM 20000
Balanced To 20, 000 RPM at G6.3
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection HSK100A
