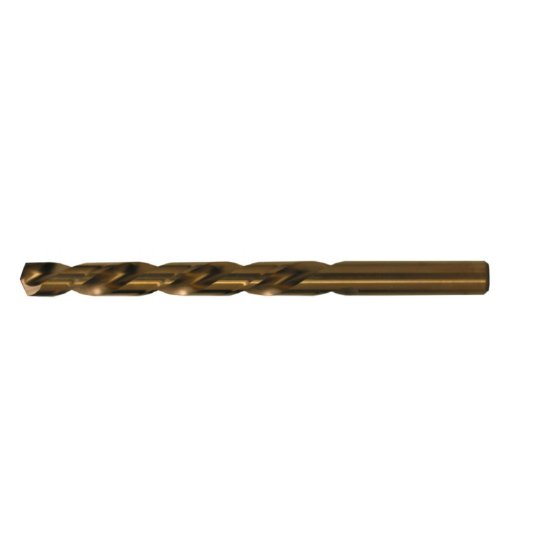

Picture of Viking 92483 27/64 Jobber 5-3/8 Length Of Cut Gold Coated

Viking 92483 27/64 Jobber 5-3/8 Length Of Cut Gold Coated

Part Number: VIK92483

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: 1137281
Vendor: Sussex Tool and Supply
$42.64
This product has a minimum quantity of 3
The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.4219 10.72MM - 27/64
Cutter Type HSS/Cobalt Drill
Overall Length 5.3750 136.53MM
Machine Side (Toolpost) CYLINDRICAL0.4219
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, it is still wear-resistant and has a high hot hardness., but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however
Type of Tool Drill
Machine Side (Toolpost) Connection Type Cylindrical
Included Angle 135°
Flutes Or Inserts 2
Shipping State MINNESOTA
Family Group 240-AL
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Mach Side Connection Size 0.4219 10.72MM - 27/64
Coating TIN
Tool Diameter 0.4219 10.72MM - 27/64
Cut Diameter Min 0.4219 10.72MM - 27/64
Coolant Thru Non Coolant
Drill Length Type Jobber
Drill Type Jobber Powder Metal
Made In USA YES
Flute Length 3.9380 100.03MM
