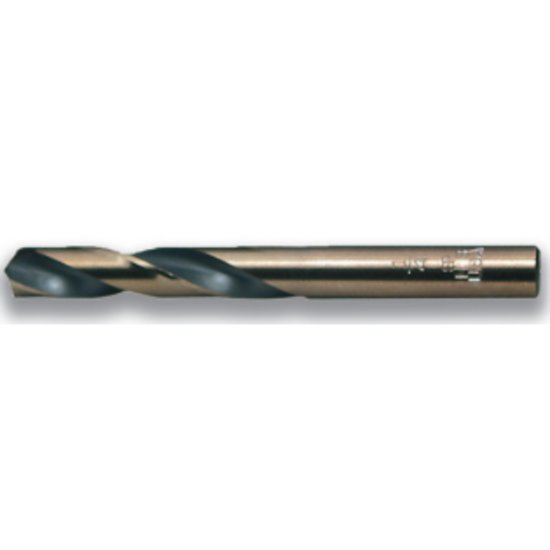

Picture of Viking 87800 13/64 Powder Metal Drill Screw Machine Length Gold Coated

Viking 87800 13/64 Powder Metal Drill Screw Machine Length Gold Coated

Part Number: VIK87800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: 1002964
Vendor: Sussex Tool and Supply
$3.35
This product has a minimum quantity of 12

VIking drill screw machine with powder metal body and titanium nitride coating. Cylindrical toolpost connection made in USA. Shipping state is MINNESOTA. Tool type is drill with TiN coating and powder metal body.

Key Details

Materials & Finish

  • Coating: TiN
  • Tool Material: Powder Metal

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.2031

Grades & Coatings

  • Alternate Description: VIKING 87800 13/64 PM DRILL SCREW MAHC. LENGTH GOLD COAT

Other Details

  • Brand: VIKING
  • Shipping State: MINNESOTA
  • Made In Usa: Yes
  • Type Of Tool: Drill

Technical Overview

What It Does

Drill screw machine length. Used in machining operations. Gold coated for durability and performance.

Composition

Powder Metal, TiN coating, Gold coated.

Typical Uses

Drill operations in machine tools. Toolpost connection for cylindrical setups. Fits VIKING 87800 machine posts.

Products specifications
Attribute name Attribute value
Shipping State MINNESOTA
Cutter Type HSS/Cobalt Drill
Made In USA YES
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Machine Side (Toolpost) CYLINDRICAL0.2031
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.2500 57.15MM
Shank Or Pilot Diameter 0.2031 5.16MM - 13/64
Family Group 260-UB
Coolant Thru Non Coolant
Coating TiN
Mach Side Connection Size 0.2031 5.16MM - 13/64
Tool Diameter 0.2031 5.16MM - 13/64
Flutes Or Inserts 2
Type of Tool Drill
Included Angle 135°
Flute Length 1.1880 30.18MM
Cut Diameter Min 0.2031 5.16MM - 13/64
Drill Type Screw Machine Powder Metal
Drill Length Type Screw
