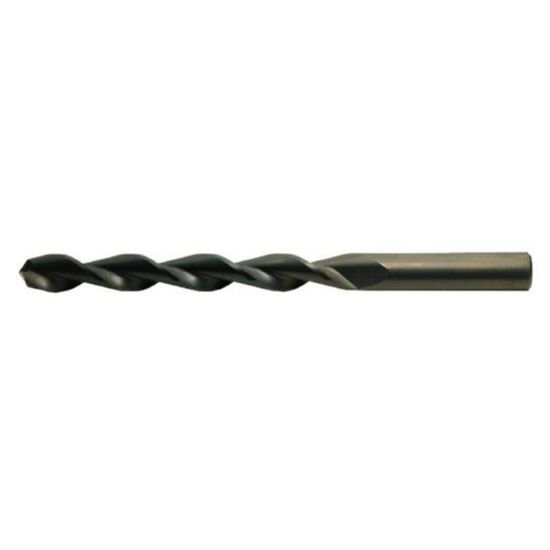

VIKING 68411 #34 HSS Drill Jobbers Length Black Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK68411
Delivery date: 3-5 days
$2.68
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Black oxide is a conversion coating (similar to Alodine) that is used for steel and stainless steel. It is used mainly for appearance and for mild corrosion resistance. Black oxide impregnated with oil can provide the highest amount of corrosion resistance. Black oxide is formed in a process similar to anodizing, where the parts are dipped into various hot baths of chemicals that convert the surface of the material into magnetite, which creates the black color. Black oxide does not have a significant dimensional impact, therefore masking parts is not necessary. This process can take a longer time due to the manual labor required and the time it takes for the baths to come to the correct temperature.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#2, Material#20
Package Size 12
Application Drilling
Additional Key Information 1 HSS/Cobalt Drill
Additional Key Information 3 HSS
Shipping State Minnesota
Sold by Pieces 12
Coating Black Oxide
Additional Key Information 2 Jobber
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.1110 2.82MM
Cutter Dia 0.1110 2.82MM - #34
Tool Material High Speed Steel
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1110 2.82MM - #34
Flute Length 1.5000 38.10MM
Included Angle 135°
Cut Dia Min 0.1110 2.82MM - #34
Machine Side CYLINDRICAL0.1110
Flutes/Inserts 2
Cut Rating <30HRC Steel, Aluminum
Overall Len 2.6250 66.68MM
Drill Length Type Jobber
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
