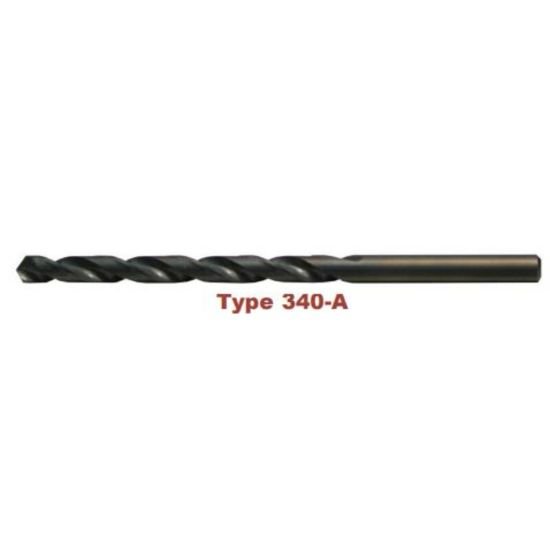

VIKING 66720 #24 HSS Drill Jobbers Length Black Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK66720
Delivery date: 3-5 days
$2.48
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Black oxide is a conversion coating (similar to Alodine) that is used for steel and stainless steel. It is used mainly for appearance and for mild corrosion resistance. Black oxide impregnated with oil can provide the highest amount of corrosion resistance. Black oxide is formed in a process similar to anodizing, where the parts are dipped into various hot baths of chemicals that convert the surface of the material into magnetite, which creates the black color. Black oxide does not have a significant dimensional impact, therefore masking parts is not necessary. This process can take a longer time due to the manual labor required and the time it takes for the baths to come to the correct temperature.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 12
Coating Black Oxide
Material # Material#20, Material#16, Material#2, Material#22
Application Drilling
Additional Key Information 1 HSS/Cobalt Drill
Package Size 12
Additional Key Information 2 Jobber
Additional Key Information 3 HSS
Shipping State Minnesota
Uncategorized
Made In USA Yes
Dimensional Specifications
Shank/Pilot Dia 0.1520 3.86MM - #24
Overall Len 3.1250 79.38MM
Flute Length 2.0000 50.80MM
Drill Length Type Jobber
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron
Cutter Dia 0.1520 3.86MM - #24
Cut Dia Min 0.1520 3.86MM - #24
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1520 3.86MM
Included Angle 118°
Machine Side CYLINDRICAL0.1520
Tool Material High Speed Steel
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
