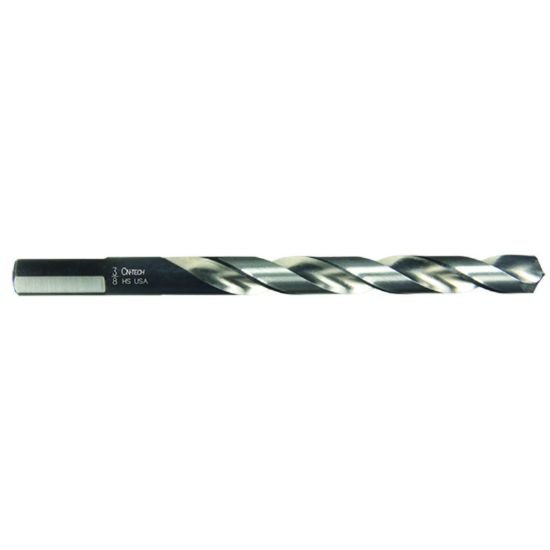

VIKING 48182 #41 HSS Drill Jobbers Length Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK48182
Delivery date: 3-5 days
$2.64
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 12
Material # Material#3, Material#16, Material#15
Additional Key Information 2 Jobber
Sold by Pieces 12
Coating Nitride
Application Drilling
Additional Key Information 1 HSS/Cobalt Drill
Additional Key Information 3 HSS
Shipping State Minnesota
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Flute Length 1.3750 34.93MM
Overall Len 2.3750 60.33MM
Drill Length Type Jobber
Flutes/Inserts 2
Machine Side Connection Size 0.0960 2.44MM
Tool Material High Speed Steel
Shank/Pilot Dia 0.0960 2.44MM - #41
Included Angle 135°
Cutter Dia 0.0960 2.44MM - #41
Cut Dia Min 0.0960 2.44MM - #41
Machine Side CYLINDRICAL0.0960
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
