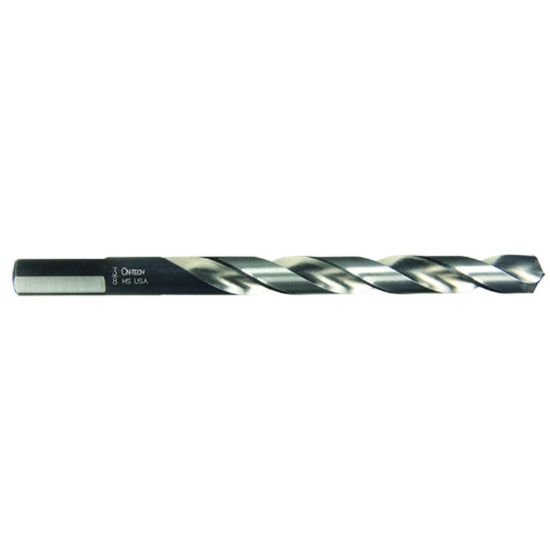

VIKING 48122 #35 HSS Drill Jobbers Length Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK48122
Delivery date: 3-5 days
$2.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 12
Material # Material#16, Material#3, Material#15
Coating Nitride
Application Drilling
Package Size 12
Additional Key Information 1 HSS/Cobalt Drill
Additional Key Information 2 Jobber
Additional Key Information 3 HSS
Shipping State Minnesota
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.1100 2.79MM - #35
Flutes/Inserts 2
Flute Length 1.5000 38.10MM
Included Angle 135°
Overall Len 2.6250 66.68MM
Machine Side CYLINDRICAL0.1100
Tool Material High Speed Steel
Shank/Pilot Dia 0.1100 2.79MM - #35
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Machine Side Connection Type Cylindrical
Cut Dia Min 0.1100 2.79MM - #35
Machine Side Connection Size 0.1100 2.79MM
Drill Length Type Jobber
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
