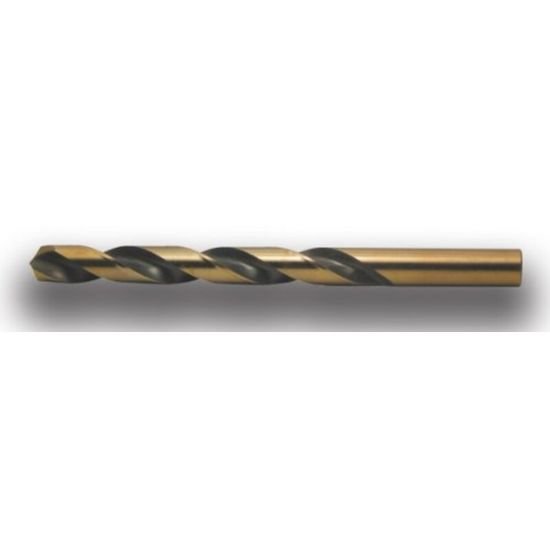

Picture of Viking 38970 #4 Powder Metal Drill Jobbers Length Nitro Carborized

Viking 38970 #4 Powder Metal Drill Jobbers Length Nitro Carborized

Part Number: VIK38970

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: 1003203
Vendor: Sussex Tool and Supply
$4.77
This product has a minimum quantity of 12

VIking drill jobbers made in USA with nitro carborized coating. Cylindrical machine post connection. Powder metal tool. VIKING 38970 #4.

Key Details

Materials & Finish

  • Coating: Nitro Carborized
  • Tool Material: Powder Metal

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.2090

Grades & Coatings

  • Alternate Description: VIKING 38970 #4 POWDER METAL DRILL JOBBERS LENGTH NITRO CARBORIZED

Other Details

  • Brand: VIKING
  • Shipping State: MINNESOTA
  • Made In Usa: Yes
  • Type Of Tool: Drill

Technical Overview

What It Does

Drill jobs with powder metal construction. Nitro carborized for durability. Used in machine tools with cylindrical connection.

Composition

Powder metal, nitro carborized, cylindrical connection.

Typical Uses

Drill jobs in machine tools. Fits cylindrical toolpost. Used in drilling tasks.

Products specifications
Attribute name Attribute value
Shipping State MINNESOTA
Cutter Type HSS/Cobalt Drill
Made In USA YES
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Machine Side (Toolpost) CYLINDRICAL0.2090
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.7500 95.25MM
Shank Or Pilot Diameter 0.2090 5.31MM - #4
Family Group 240-UB
Coolant Thru Non Coolant
Coating Nitro Carborized
Mach Side Connection Size 0.2090 5.31MM
Tool Diameter 0.2090 5.31MM - #4
Flutes Or Inserts 2
Type of Tool Drill
Included Angle 135°
Flute Length 2.5000 63.50MM
Cut Diameter Min 0.2090 5.30MM - #4
Drill Type Jobber Powder Metal
Drill Length Type Jobber
