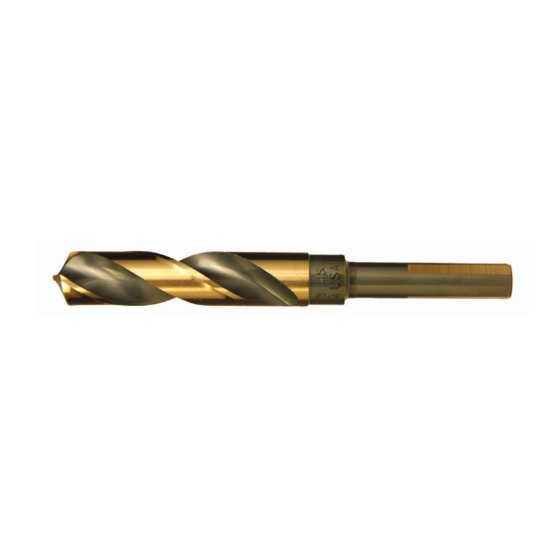

Picture of Viking 25501 14.5mm Powder Metal Drill Silver&Deming Length Gold Coated

Viking 25501 14.5mm Powder Metal Drill Silver&Deming Length Gold Coated

Part Number: VIK25501

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: 1136597
Vendor: Sussex Tool and Supply
$45.73
The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Cutter Type HSS/Cobalt Drill
Overall Length 6.0000 152.40MM
Machine Side (Toolpost) CYLINDRICAL0.5000
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, it is still wear-resistant and has a high hot hardness., but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however
Type of Tool Drill
Machine Side (Toolpost) Connection Type Cylindrical
Included Angle 135°
Flutes Or Inserts 2
Shipping State MINNESOTA
Family Group 280-UBM
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Mach Side Connection Size 0.5000 12.70MM - 1/2
Coating TIN
Tool Diameter 0.5709 14.50MM
Cut Diameter Min 0.5709 14.50MM
Coolant Thru Non Coolant
Drill Type Silver & Deming Powder Metal Reduced Shank
Made In USA YES
