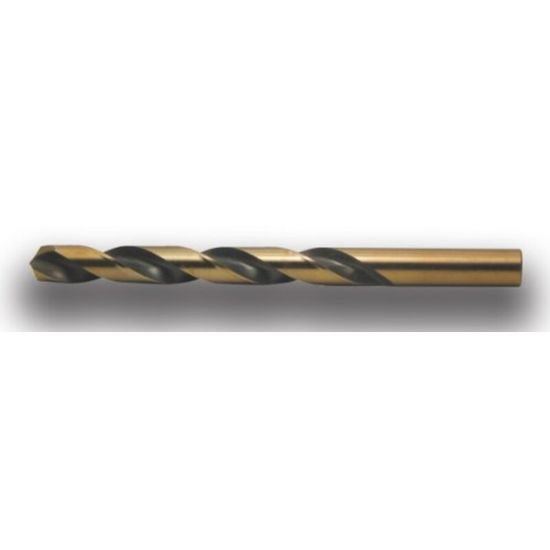

Picture of Viking 22360 3/4 Powder Metal Drill Jobbers Length Nitro CArborized

Viking 22360 3/4 Powder Metal Drill Jobbers Length Nitro CArborized

Part Number: VIK22360

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: 1132566
Vendor: Sussex Tool and Supply
$54.15
The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Cutter Type HSS/Cobalt Drill
Overall Length 7.3750 187.33MM
Machine Side (Toolpost) CYLINDRICAL0.7500
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, it is still wear-resistant and has a high hot hardness., but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however
Type of Tool Drill
Machine Side (Toolpost) Connection Type Cylindrical
Included Angle 135°
Flutes Or Inserts 2
Shipping State MINNESOTA
Family Group 240-UB
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Mach Side Connection Size 0.7500 19.05MM - 3/4
Coating Nitro Carborized
Tool Diameter 0.7500 19.05MM - 3/4
Cut Diameter Min 0.7500 19.05MM - 3/4
Coolant Thru Non Coolant
Drill Length Type Jobber
Drill Type Jobber Powder Metal
Made In USA YES
Flute Length 5.6250 142.88MM
