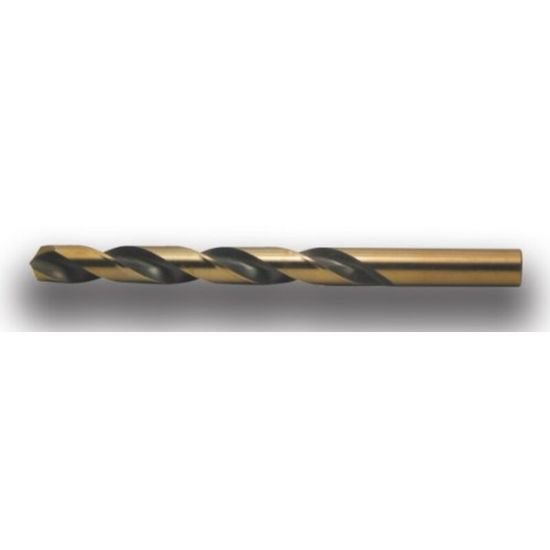

Picture of Viking 22210 33/64 Powder Metal Drill Jobbers Length Nitro Carborized

Viking 22210 33/64 Powder Metal Drill Jobbers Length Nitro Carborized

Part Number: VIK22210

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: 1002189
Vendor: Sussex Tool and Supply
$34.34

VIking 22210 drill jobbers made in usa with powder metal body nitro carborized coating cylindrical toolpost connection.

Key Details

Materials & Finish

  • Coating: Nitro Carborized
  • Tool Material: Powder Metal

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.5156

Grades & Coatings

  • Alternate Description: VIKING 22210 33/64 POWDER METAL DRILL JOBBERS LENGTH NITRO CARBORIZED

Other Details

  • Brand: VIKING
  • Shipping State: MINNESOTA
  • Made In Usa: Yes
  • Type Of Tool: Drill

Technical Overview

What It Does

Drill jobs with powder metal drill jobbers. Designed for machine tool use with cylindrical connection. Functions in nitro carborized steel environment.

Composition

Powder metal, nitro carborized, cylindrical connection.

Typical Uses

Used in machine tools with toolpost connection. Fits cylindrical 0.5156 toolpost. Drills in settings with powder metal drill jobbers.

Products specifications
Attribute name Attribute value
Shipping State MINNESOTA
Cutter Type HSS/Cobalt Drill
Made In USA YES
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Machine Side (Toolpost) CYLINDRICAL0.5156
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 6.6250 168.28MM
Shank Or Pilot Diameter 0.5156 13.10MM - 33/64
Family Group 240-UB
Coolant Thru Non Coolant
Coating Nitro Carborized
Mach Side Connection Size 0.5156 13.10MM - 33/64
Tool Diameter 0.5156 13.10MM - 33/64
Flutes Or Inserts 2
Type of Tool Drill
Included Angle 135°
Flute Length 4.8130 122.25MM
Cut Diameter Min 0.5156 13.10MM - 33/64
Drill Type Jobber Powder Metal
Drill Length Type Jobber
