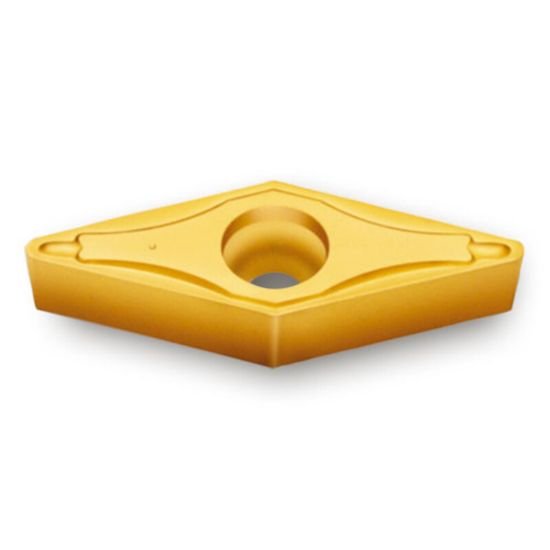

Picture of VBMT331FG PV3010 Ingersoll VBMT160404FG PV3010 35.0° Positive Cermet 0.0160 0.41mm Radius Finishing

VBMT331FG PV3010 Ingersoll VBMT160404FG PV3010 35.0° Positive Cermet 0.0160 0.41mm Radius Finishing

Part Number: ING5516704 ISO: VBMT160404FG PV3010 ANSI:VBMT331FG PV3010
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$17.41
This product has a minimum quantity of 10
SKU: 1043656

Description

INGERSOLL VBMT160404FG PV3010 Positive 35.0 ° Insert Finishing PVD coated Cermet grade with excellent wear resistance and low coefficient of friction for high speed finish turning of steels, stainless steels and cast irons with long tool life
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Dimensions & Sizing
Insert Size Ic 16 "33"
Geometry & Angles
Corner Radius 0.0160 0.41MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Materials & Finish
Cutting Edge Mat Cermet
Coating TIN
Grade PV3010
Compatibility & Fit
Insert Fits 35.0°
