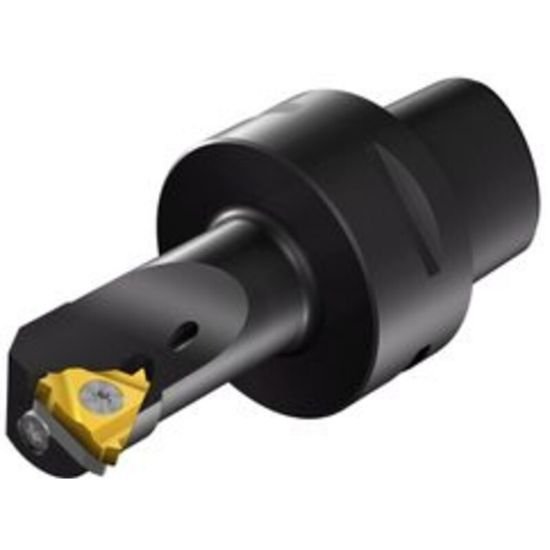

Picture of VARDEX VCAP40-SIR22090-3 Stick Tool Iso Thread

VARDEX VCAP40-SIR22090-3 Stick Tool Iso Thread

ANSI: VCAP40-SIR22090-3

ISO: VCAP40-SIR22090-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66172
Delivery date: 3-5 days
$686.69
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

The above toolholders are for RH inserts. For LH inserts, add LH to the toolholder’s ordering code (Example VCAP40-SIL12060-3).

The above toolholders have a 1.5° helix angle

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Iso Thread
Application Ext.Threading
Package Size 1
Additional Key Information 1 Stick Tool
Insert/Tool Insert
Sold by Pieces 1
Additional Key Information 3 Quick Change
Insert Application General Purpose
Shipping State Wisconsin
Insert Type Positive
Additional Key Information 4 PSC 4 "Capt0 Type"
Uncategorized
Made In USA No
Dimensional Specifications
Neck Length 2.7200 69.09MM
Machine Side Connection Type PSC "Capt0 Type"
Overall Len 3.5400 89.92MM
Shank/Pilot Dia 1.5748 40.00MM
Machine Side PSC "Capt0 Type"4
Tool Material Steel
Min Bore 1.5700
Insert Size Ic 16
Machine Side Connection Size 1.5748 40.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ISO
Seat/Nest YI3
Hand R/L Right
Fasteners & Connectors
Seat Screw SY3T
Insert Screw SA3T
