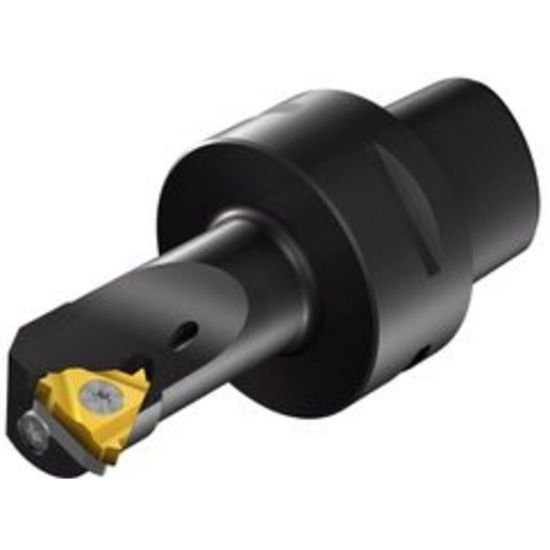

Picture of VARDEX VCAP40-SIR14060-3 Stick Tool Iso Thread

VARDEX VCAP40-SIR14060-3 Stick Tool Iso Thread

ANSI: VCAP40-SIR14060-3

ISO: VCAP40-SIR14060-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66170
Delivery date: 3-5 days
$686.69
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

The above toolholders are for RH inserts. For LH inserts, add LH to the toolholder’s ordering code (Example VCAP40-SIL12060-3).

The above toolholders have a 1.5° helix angle

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Additional Key Information 1 Stick Tool
Shipping State Wisconsin
Insert/Tool Insert
Additional Key Information 4 PSC 4 "Capt0 Type"
Insert Type Positive
Additional Key Information 2 Iso Thread
Sold by Pieces 1
Additional Key Information 3 Quick Change
Application Ext.Threading
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 16
Machine Side PSC "Capt0 Type"4
Tool Material Steel
Min Bore 0.9800
Machine Side Connection Size 1.5748 40.00MM
Neck Length 1.5000 38.10MM
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 1.5748 40.00MM
Overall Len 2.3600 59.94MM
Cutting & Machining Properties
Inter/Extern Internal
Seat/Nest YI3
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ISO
Hand R/L Right
Fasteners & Connectors
Seat Screw SY3T
Insert Screw SA3T
