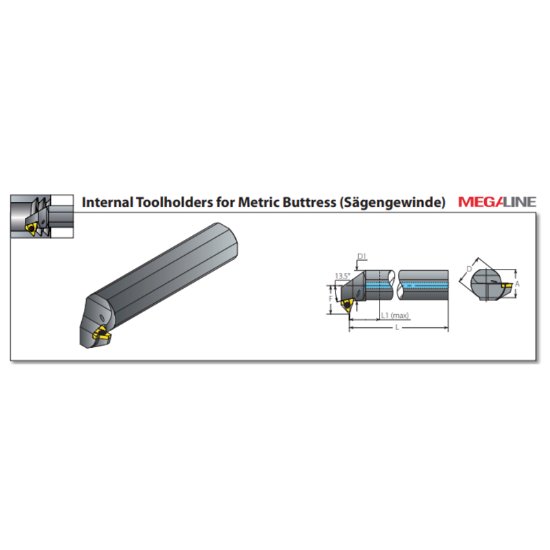

Picture of VARDEX NVRC250-5MG20SAGE Boring Bar Proprietary

VARDEX NVRC250-5MG20SAGE Boring Bar Proprietary

ANSI: NVRC250-5MG20SAGE

ISO: NVRC250-5MG20SAGE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66402
Delivery date: 3-5 days
$1,371.81
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Thread Turning Mega Line Holders IN RH Shank Diameter 2 1/2" (Inch), Tool Overhang 6.26" (Inch), Insert Compatibility for 5MGIR

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Additional Key Information 1 Boring Bar
Shipping State Wisconsin
Insert Type Positive
Application Int.Threading
Insert/Tool Tool
Additional Key Information 2 Proprietary
Sold by Pieces 1
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Type Boring Bar
Overall Len 11.0400 280.42MM
Neck Dia 2.4900
Shank/Pilot Dia 2.5000 63.50MM -2-1/2
Insert Size Ic 5MGIR
Machine Side BBAR2.5000
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Min Bore 3.1500
Cutting & Machining Properties
Inter/Extern Internal
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style VA
Hand R/L Right
Fasteners & Connectors
Clamp Screw S5MG
