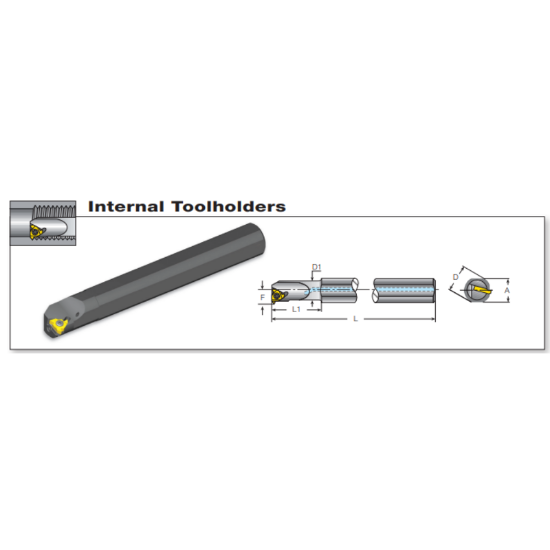

Picture of VARDEX NVRC13-3 Boring Bar Iso Thread

VARDEX NVRC13-3 Boring Bar Iso Thread

ANSI: NVRC13-3

ISO: NVRC13-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66372
Delivery date: 3-5 days
$132.11
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Thread Turning Standard Holders IN RH Shank Diameter 20 (mm), Tool Overhang 32 (mm), Insert Compatibility for 3IR

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Additional Key Information 1 Boring Bar
Shipping State Wisconsin
Application Int.Threading, Int.Groove Threading
Package Size 1
Insert Type Positive
Additional Key Information 2 Iso Thread
Sold by Pieces 1
Insert/Tool Insert
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side BBAR0.7874
Tool Material Steel
Min Bore 0.6693
Neck Dia 0.5000
Machine Side Connection Type Boring Bar
Insert Size Ic 16
Shank/Pilot Dia 0.7874 20.00MM
Machine Side Connection Size 0.7874 20.00MM
Overall Len 7.0866 180.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ISO
Hand R/L Right
Inter/Extern Internal
Coolant Thru Yes
Fasteners & Connectors
Clamp Screw SN3T
