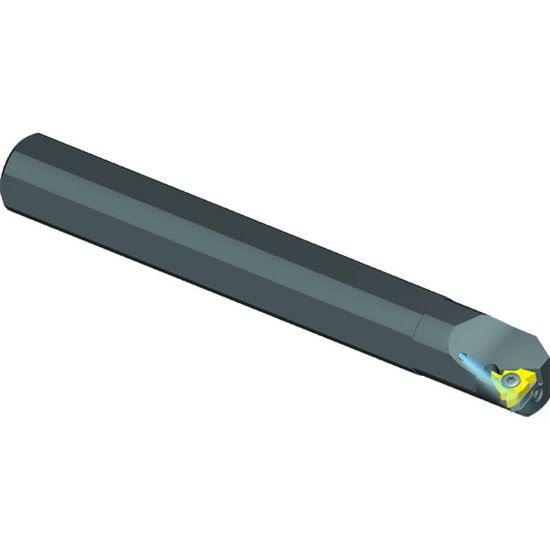

VARDEX AVRC100-4LH Boring Bar Iso Thread

ANSI: AVRC100-4LH

ISO: AVRC100-4LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66103
Delivery date: 3-5 days
$181.06
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Thread Turning Standard Holders IN LH Shank Diameter 1 1/4" (Inch), Tool Overhang 2.5" (Inch), Insert Compatibility for 4IL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Threading, Int.Groove Threading
Package Size 1
Sold by Pieces 1
Insert Type Positive
Additional Key Information 2 Iso Thread
Insert Application General Purpose
Additional Key Information 1 Boring Bar
Shipping State Wisconsin
Uncategorized
Made In USA No
Dimensional Specifications
Neck Dia 1.0000
Tool Material Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 22
Min Bore 1.2500
Overall Len 10.0000 254.00MM
Machine Side BBAR1.2500
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Left
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern Internal
Seat/Nest YE4
Fasteners & Connectors
Clamp Screw SA4T
Seat Screw SY4T
