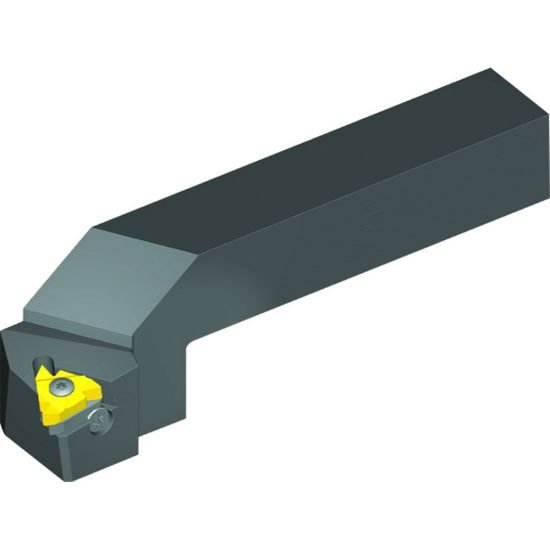

Picture of VARDEX AL100-4CQ Stick Tool Iso Thread

VARDEX AL100-4CQ Stick Tool Iso Thread

ANSI: AL100-4CQ

ISO: AL100-4CQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66025
Delivery date: 3-5 days
$185.67
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Thread Turning CQ - Drop Head Qualified Holders EX RH 1" (Inch)x1" (Inch) Shank, Insert Compatibility for 4ER

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Stick Tool
Insert Application General Purpose
Shipping State Wisconsin
Insert Type Positive
Insert/Tool Tool
Application Ext.Groove Threading, Ext.Threading
Sold by Pieces 1
Additional Key Information 2 Iso Thread
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 22
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Tool Over Hang 1.1300
Tool Width 1.0000
Machine Side STICK TOOL1.0000
Cutting & Machining Properties
Coolant Thru No
Insert Style ISO
Hand R/L Right
Seat/Nest YE4
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Fasteners & Connectors
Seat Screw SY4T
Clamp Screw SA4T
Clamp/Wedge C4
