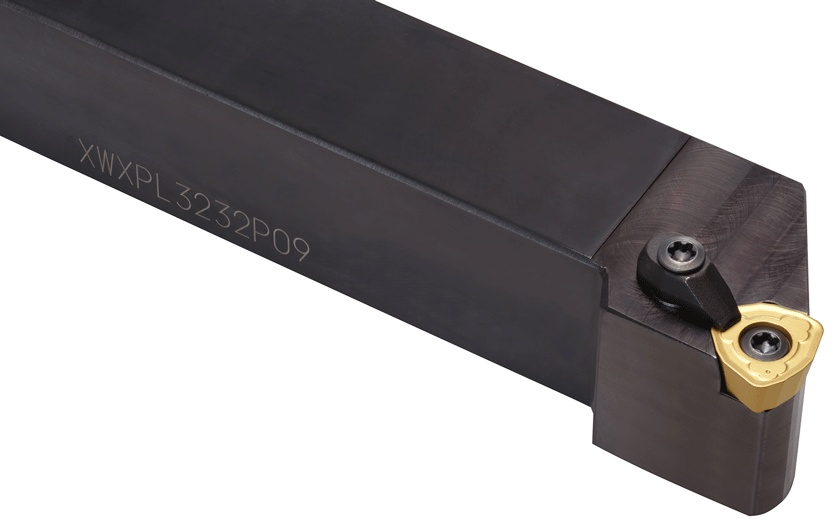

Picture of Tungaloy XWXPL24-09 Stick Tool Trigon Insert Posi,X style, 20deg Approach , Steel Square 1.500 Shank

Tungaloy XWXPL24-09 Stick Tool Trigon Insert Posi,X style, 20deg Approach , Steel Square 1.500 Shank

Part Number: TUN6853748 ISO: XWXPL24-09 ANSI:XWXPL24-09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1073519
Vendor: Sussex Tool and Supply
$279.75

Description

TUNGALOY 6853748 Trigon Stick Tool1.5000 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WP
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Hand Left Hand
Inter/Extern External
Dimensions & Sizing
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 9
Geometry & Angles
Lead Angle 25°
Lead Angle & Clearance Angle Combined 25° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Trigon
