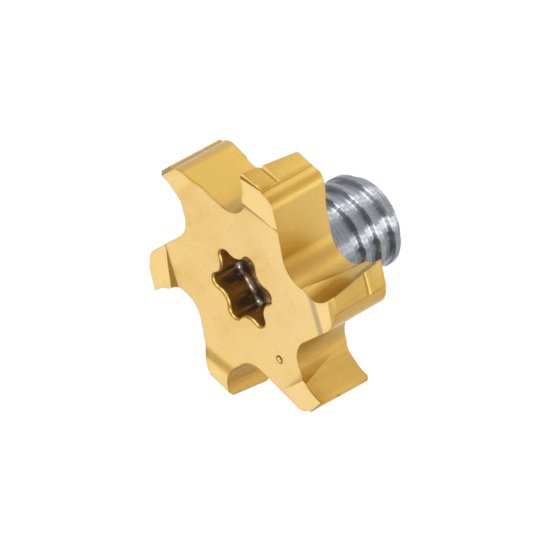

Picture of Tungaloy VTB195W4.00R04-06S08 GH130 Dia 19.50mm SH T05 LOC 0.1575 OAL0.1795T-Slot,Replacable Head Carbide TiCN Single End T-Slot0.0157 0.40mm TUNG MEISTER

Tungaloy VTB195W4.00R04-06S08 GH130 Dia 19.50mm SH T05 LOC 0.1575 OAL0.1795T-Slot,Replacable Head Carbide TiCN Single End T-Slot0.0157 0.40mm TUNG MEISTER

Part Number: TUN6859434 0.768 x T05 x 0.157 x 0.180
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1185987
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 2

Description

TUNGALOY VTB195W4.00R04-06S08 GH130 T-Slot,Replacable Head Carbide TiCN T-Slot 0.0157 0.40MM Flutes 6 Single End TUNG MEISTER Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape T-Slot
Cutter Style Screw On T-Slot
Single/Double End Single End
Inch/Metric Metric
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.1795 4.56MM
Shank/Pilot Dia T05
Flutes/Inserts 6
Tool Dia 0.7677 19.50MM
Length Of Cut 0.1575 4.00MM
Cutting Width 0.1575 4.00MM
Geometry & Angles
Corner Radius 0.0157 0.40MM
Helix Angle 0
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
