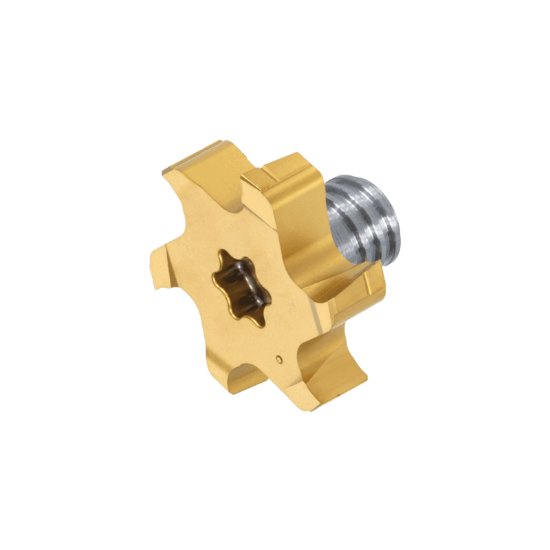

Picture of Tungaloy VTB07W187R016-U06S08 GH130 Dia 3/4 SH T08 LOC 0.1870 OAL0.2050T-Slot,Replacable Head Carbide TiCN Single End T-Slot0.0160 0.41mm TUNG MEISTER

Tungaloy VTB07W187R016-U06S08 GH130 Dia 3/4 SH T08 LOC 0.1870 OAL0.2050T-Slot,Replacable Head Carbide TiCN Single End T-Slot0.0160 0.41mm TUNG MEISTER

Part Number: TUN6864015 0.750 x T08 x 0.187 x 0.205

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1187984
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 2
TUNGALOY VTB07W187R016-U06S08 GH130 T-Slot,Replacable Head Carbide TiCN T-Slot 0.0160 0.41MM Flutes 6 Single End TUNG MEISTER Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Coating TICN
Mach Side Connection Size T08
Overall Length 0.2050 5.21MM
Coolant Thru Non Coolant
Shank/Pilot Dia T08
Flutes/Inserts 6
Tool Dia 0.7500 19.05MM - 3/4
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.1870 4.75MM
End Of Tool Shape T-Slot
Cutter Style Screw On T-Slot
Single/Double End Single End
Corner Radius 0.0160 0.41MM
Inch/Metric Inch
Helix Angle 0
Center Cutting Non Center Cutting
Cutting Width 0.1870 4.75MM
Chamfer Angle 90.0°
