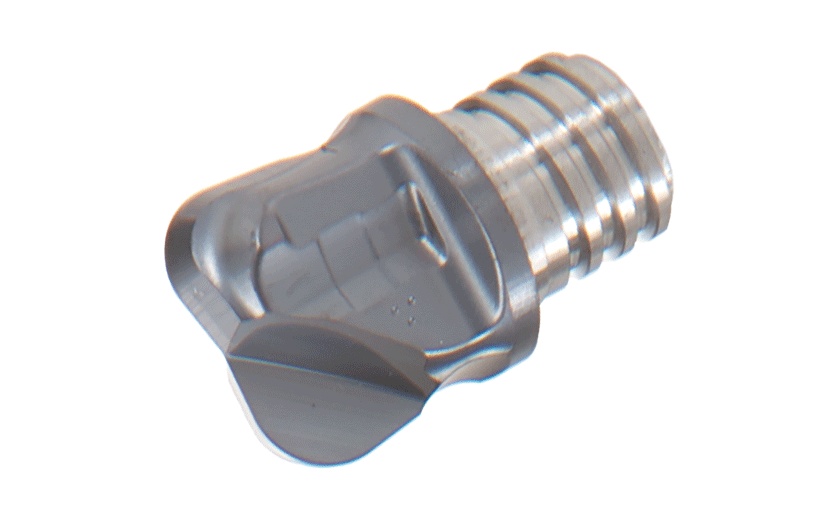

Tungaloy VRB075L45R250-U02S12 AH725 Dia 3/4 SH T06 LOC 0.4500 OAL0.6800End Mill,Replacable Head Carbide TiAlN Single End High Feed0.2500 6.35mm TUNG MEISTER

Part Number: TUN6863911 0.750 x T06 x 0.450 x 0.680
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1187987
$142.31
This product has a minimum quantity of 2

Description

TUNGALOY VRB075L45R250-U02S12 AH725 End Mill,Replacable Head Carbide TiAlN High Feed 0.2500 6.35MM Flutes 2 Single End TUNG MEISTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape High Feed
Cutter Style Screw On Feed Mill
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.6800 17.27MM
Shank/Pilot Dia T06
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 0.4500 11.43MM
Geometry & Angles
Corner Radius 0.2500 6.35MM
Chamfer Angle 97.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
