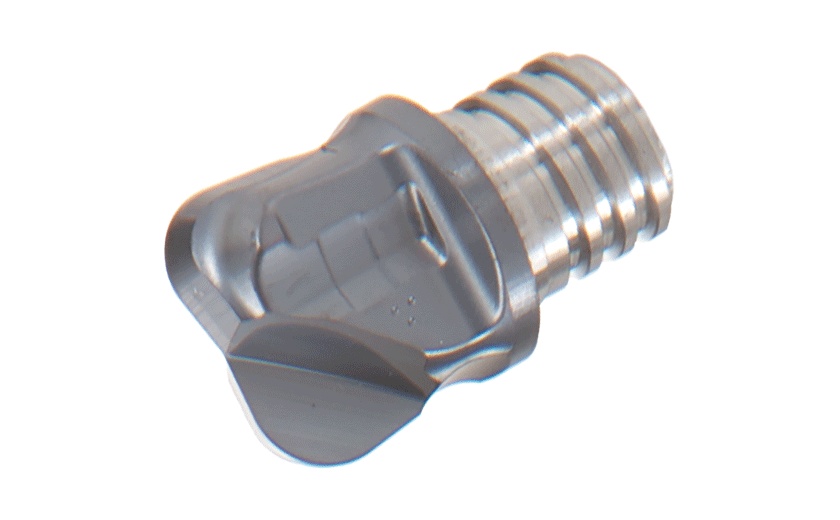

Tungaloy VRB062L31R187-U02S10 AH725 Dia 5/8 SH T05 LOC 0.3102 OAL0.5800End Mill,Replacable Head Carbide TiAlN Single End High Feed0.1870 4.75mm TUNG MEISTER

Part Number: TUN6863899 0.625 x T05 x 0.310 x 0.580
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1189537
$122.36
This product has a minimum quantity of 2

Description

TUNGALOY VRB062L31R187-U02S10 AH725 End Mill,Replacable Head Carbide TiAlN High Feed 0.1870 4.75MM Flutes 2 Single End TUNG MEISTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape High Feed
Cutter Style Screw On Feed Mill
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.5800 14.73MM
Shank/Pilot Dia T05
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.3102 7.88MM
Geometry & Angles
Corner Radius 0.1870 4.75MM
Chamfer Angle 97.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
