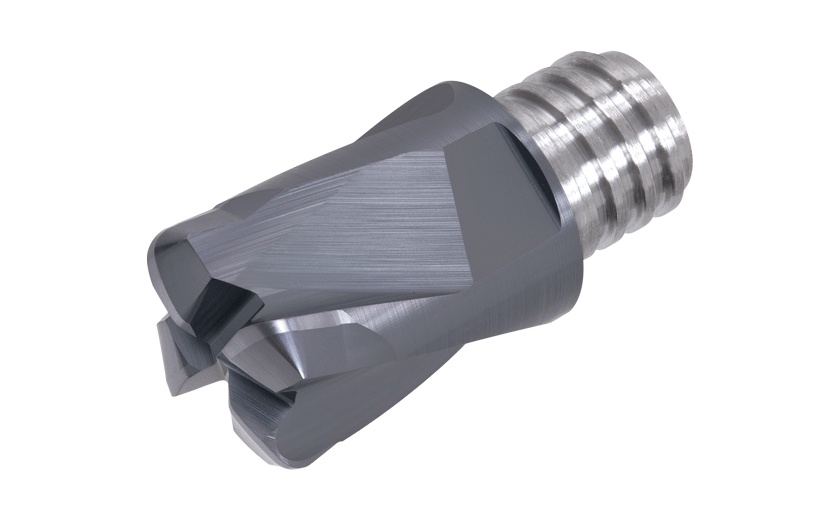

Picture of Tungaloy VFX120L0.60R18H04S08 AH725 Dia 12mm SH T06 LOC 0.0236 OAL0.6496End Mill,Replacable Head Carbide TiAlN Single End High Feed0.0709 1.80mm TUNG MEISTER

Tungaloy VFX120L0.60R18H04S08 AH725 Dia 12mm SH T06 LOC 0.0236 OAL0.6496End Mill,Replacable Head Carbide TiAlN Single End High Feed0.0709 1.80mm TUNG MEISTER

Part Number: TUN3353489 0.472 x T06 x 0.024 x 0.650

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1185754
Vendor: Sussex Tool and Supply
$148.20
This product has a minimum quantity of 2
TUNGALOY VFX120L0.60R18H04S08 AH725 End Mill,Replacable Head Carbide TiAlN High Feed 0.0709 1.80MM Flutes 4 Single End TUNG MEISTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TiAlN
Mach Side Connection Size T06
Overall Length 0.6496 16.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia T06
Flutes/Inserts 4
Tool Dia 0.4724 12.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.0236 0.60MM
End Of Tool Shape High Feed
Cutter Style Screw On Feed Mill
Single/Double End Single End
Corner Radius 0.0709 1.80MM
Inch/Metric Metric
Helix Angle 20
Center Cutting Non Center Cutting
Chamfer Angle 97.0°
