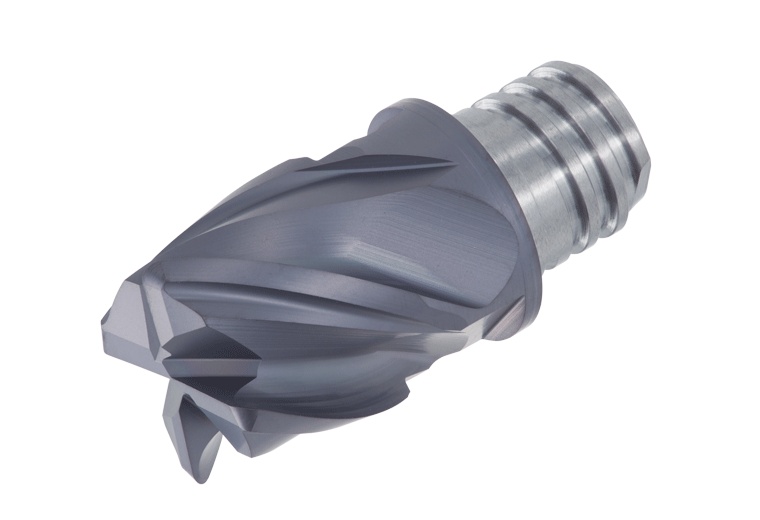

Picture of Tungaloy VEH200L15.0R05I04S12 AH725 Dia 20mm LOC 0.5906 OAL1.0039End Mill,Replacable Head Standard Flute Standard Helix Carbide TiAlN Single End Corner Radius0.0197 0.50mm TUNG MEISTER

Tungaloy VEH200L15.0R05I04S12 AH725 Dia 20mm LOC 0.5906 OAL1.0039End Mill,Replacable Head Standard Flute Standard Helix Carbide TiAlN Single End Corner Radius0.0197 0.50mm TUNG MEISTER

Part Number: TUN6752536
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
This product has a minimum quantity of 2
SKU: 1186149

Description

TUNGALOY VEH200L15.0R05I04S12 AH725 Standard Helix End Mill,Replacable Head Carbide TiAlN Corner Radius 0.0197 0.50MM Standard Flute Flutes 4 Single End TUNG MEISTER Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Flutes/Inserts 4
Tool Dia 0.7874 20.00MM
Length Of Cut 0.5906 15.00MM
Geometry & Angles
Corner Radius 0.0197 0.50MM
Helix Angle 39
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
