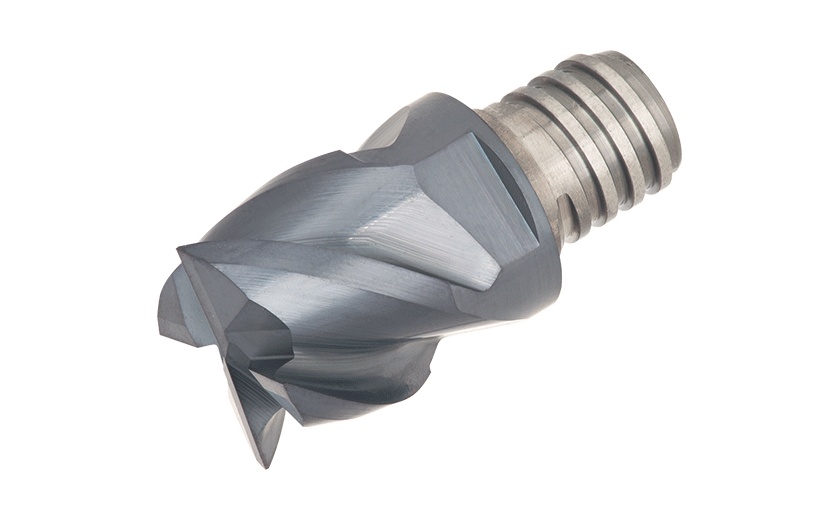

Tungaloy VEE200L15.0R00-04S12 AH725 Dia 20mm SH T12 LOC 0.5906 OAL1.0039End Mill,Replacable Head Standard Flute High Helix Carbide TiAlN Single End Square TUNG MEISTER

Part Number: TUN6859422 0.787 x T12 x 0.591 x 1.004

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1186140
$197.95
This product has a minimum quantity of 2
TUNGALOY VEE200L15.0R00-04S12 AH725 High Helix End Mill,Replacable Head Carbide TiAlN Square Standard Flute Flutes 4 Single End TUNG MEISTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TiAlN
Mach Side Connection Size T12
Overall Length 1.0039 25.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia T12
Flutes/Inserts 4
Tool Dia 0.7874 20.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5906 15.00MM
End Of Tool Shape Square
Cutter Style Screw On End Mill
Single/Double End Single End
Inch/Metric Metric
Helix Angle 45
Center Cutting Center Cutting
Chamfer Angle 90.0°
