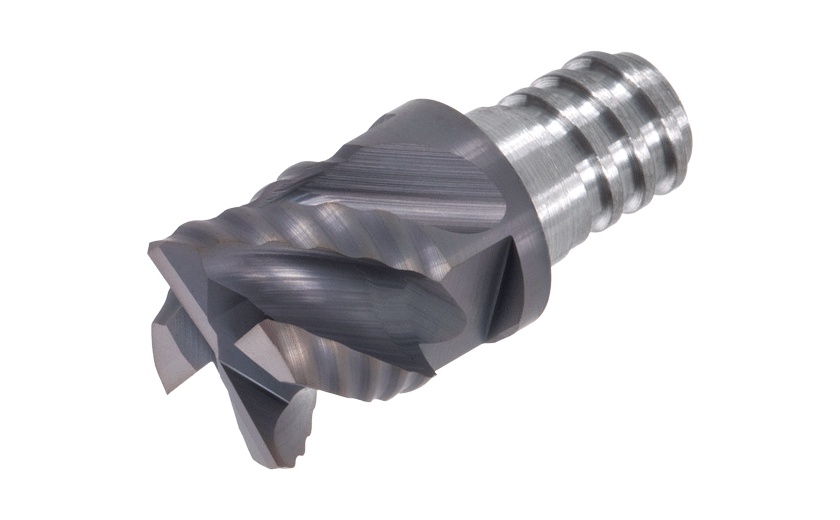

Picture of Tungaloy VEE160L12.0C40R05S10 AH715 Dia 16mm SH T05 LOC 0.4724 OAL0.8071End Mill,Replacable Head Carbide TiAlN Single End 45.0° Chamfer TUNG MEISTER

Tungaloy VEE160L12.0C40R05S10 AH715 Dia 16mm SH T05 LOC 0.4724 OAL0.8071End Mill,Replacable Head Carbide TiAlN Single End 45.0° Chamfer TUNG MEISTER

Part Number: TUN6779138 0.630 x T05 x 0.472 x 0.807

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1185948
Vendor: Sussex Tool and Supply
$230.45
This product has a minimum quantity of 2
TUNGALOY VEE160L12.0C40R05S10 AH715 End Mill,Replacable Head Carbide TiAlN 45.0° Chamfer Chamfer Flutes 5 Single End TUNG MEISTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TiAlN
Mach Side Connection Size T05
Overall Length 0.8071 20.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia T05
Flutes/Inserts 5
Tool Dia 0.6299 16.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.4724 12.00MM
End Of Tool Shape Corner Chamfer
Cutter Style Screw On Head Rougher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 45
Center Cutting Non Center Cutting
Chamfer Angle 90.0°
