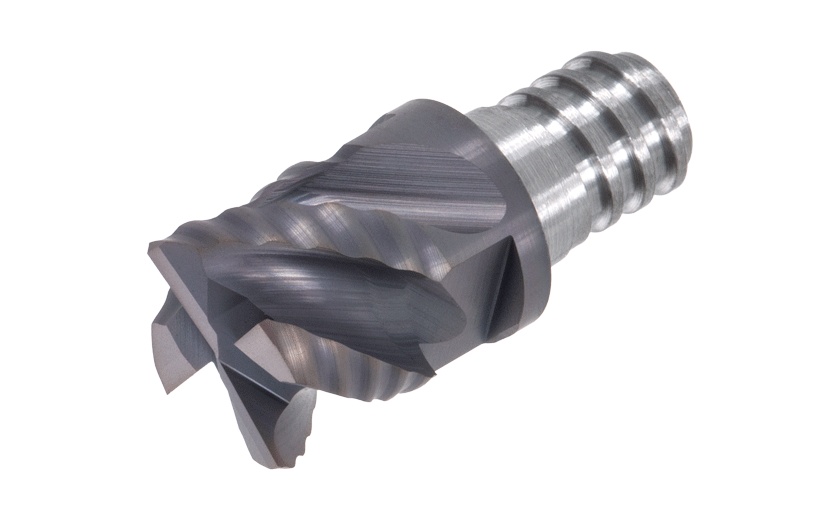

Picture of Tungaloy VEE100L07.0C30R04S06 AH725 Dia 10mm SH T12 LOC 0.2756 OAL0.5118End Mill,Replacable Head Carbide TiAlN Single End 45.0° Chamfer TUNG MEISTER

Tungaloy VEE100L07.0C30R04S06 AH725 Dia 10mm SH T12 LOC 0.2756 OAL0.5118End Mill,Replacable Head Carbide TiAlN Single End 45.0° Chamfer TUNG MEISTER

Part Number: TUN6859417 0.394 x T12 x 0.276 x 0.512
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1185689
Vendor: Sussex Tool and Supply
$101.99
This product has a minimum quantity of 2

Description

TUNGALOY VEE100L07.0C30R04S06 AH725 End Mill,Replacable Head Carbide TiAlN 45.0° Chamfer Chamfer Flutes 4 Single End TUNG MEISTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Screw On Head Rougher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.5118 13.00MM
Shank/Pilot Dia T12
Flutes/Inserts 4
Tool Dia 0.3937 10.00MM
Length Of Cut 0.2756 7.00MM
Geometry & Angles
Helix Angle 45
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
