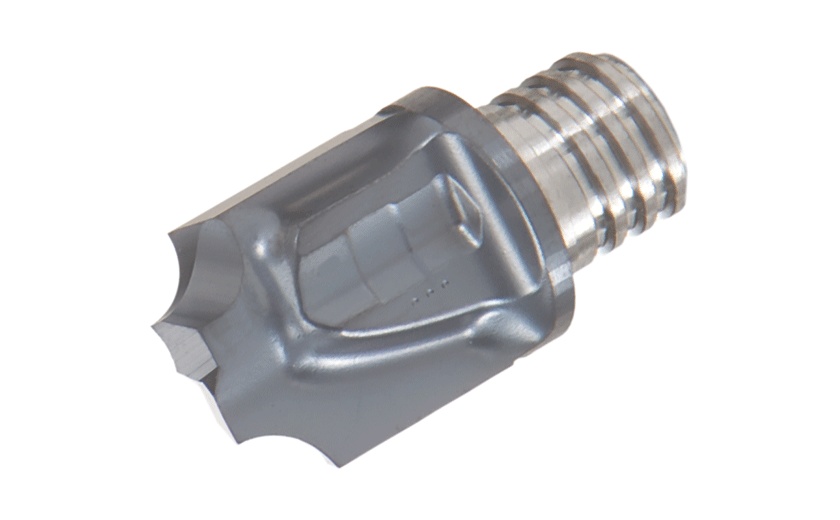

Tungaloy VCR200L07.0R60-02S12 AH725 Dia 8mm SH T10 LOC 0.2756 OAL0.6850Corner Rounder,Replacable Head Carbide TiAlN Single End Corner Rounder0.2362 6.00mm TUNG MEISTER

Part Number: TUN6859439 0.315 x T10 x 0.276 x 0.685

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1189880
$182.70
This product has a minimum quantity of 2
TUNGALOY VCR200L07.0R60-02S12 AH725 Corner Rounder,Replacable Head Carbide TiAlN Corner Rounder 0.2362 6.00MM Flutes 2 Single End TUNG MEISTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Screw On Head, Corner Rounder
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TiAlN
Mach Side Connection Size T10
Overall Length 0.6850 17.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia T10
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.2756 7.00MM
End Of Tool Shape Corner Rounder
Cutter Style Screw On Corner Rounding
Single/Double End Single End
Corner Radius 0.2362 6.00MM
Inch/Metric Metric
Helix Angle 0
Center Cutting Non Center Cutting
