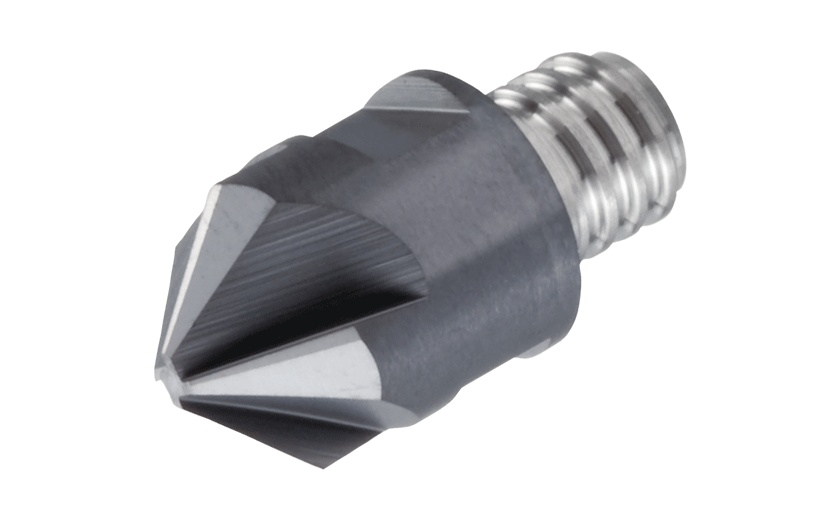

Picture of Tungaloy VCA127L05.3A45-04S08 AH725 Dia 0.0779 SH T12 LOC 0.2087 OAL0.6496Countersink,Replacable Head Carbide TiAlN Single End Countersink TUNG MEISTER

Tungaloy VCA127L05.3A45-04S08 AH725 Dia 0.0779 SH T12 LOC 0.2087 OAL0.6496Countersink,Replacable Head Carbide TiAlN Single End Countersink TUNG MEISTER

Part Number: TUN6859263 0.078 x T12 x 0.209 x 0.650
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1182167
Vendor: Sussex Tool and Supply
$110.35
This product has a minimum quantity of 2

Description

TUNGALOY VCA127L05.3A45-04S08 AH725 Countersink,Replacable Head Carbide TiAlN Countersink Flutes 4 Single End TUNG MEISTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Countersink Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Countersink
Cutter Style Screw On Countersink
Single/Double End Single End
Inch/Metric Metric
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.6496 16.50MM
Shank/Pilot Dia T12
Flutes/Inserts 4
Tool Dia 0.0779 1.98MM
Length Of Cut 0.2087 5.30MM
Geometry & Angles
Helix Angle 0
Chamfer Angle 45.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
