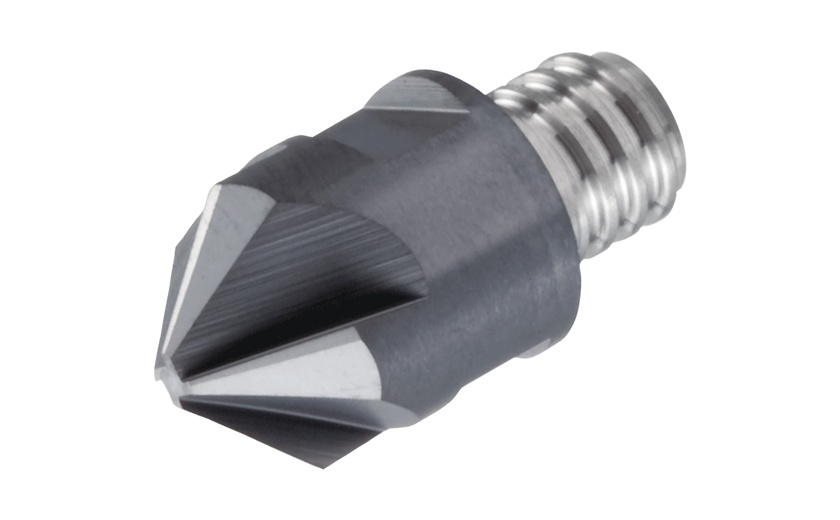

Picture of Tungaloy VCA100L04.0A45-04S06 AH725 Dia 0.0767 SH T12 LOC 0.1575 OAL0.5118Countersink,Replacable Head Carbide TiAlN Single End Countersink TUNG MEISTER

Tungaloy VCA100L04.0A45-04S06 AH725 Dia 0.0767 SH T12 LOC 0.1575 OAL0.5118Countersink,Replacable Head Carbide TiAlN Single End Countersink TUNG MEISTER

Part Number: TUN6859247 0.077 x T12 x 0.158 x 0.512

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1182164
Vendor: Sussex Tool and Supply
$95.85
This product has a minimum quantity of 2
TUNGALOY VCA100L04.0A45-04S06 AH725 Countersink,Replacable Head Carbide TiAlN Countersink Flutes 4 Single End TUNG MEISTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Countersink Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TiAlN
Mach Side Connection Size T12
Overall Length 0.5118 13.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia T12
Flutes/Inserts 4
Tool Dia 0.0768 1.95MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.1575 4.00MM
End Of Tool Shape Countersink
Cutter Style Screw On Countersink
Single/Double End Single End
Inch/Metric Metric
Helix Angle 0
Center Cutting Non Center Cutting
Chamfer Angle 45.0°
