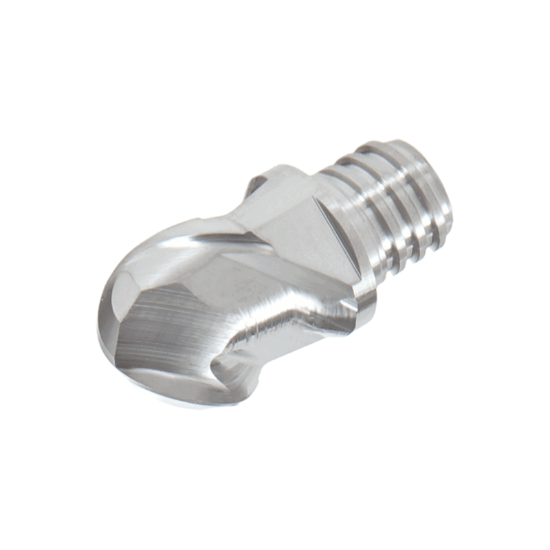

TUNGALOY VBE120L09.0-BGA02S08 KS15F DIA 12MM SH T08 LOC 0.3543 OAL0.6496End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6859307
Delivery date: 3-5 days
$95.05
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#42, Material#25, Material#20
Additional Key Information 1 Screw On Head, End Mill
Application Copy Milling, Profile Milling, Ball Milling, Ball Slot Milling, Side Milling
Additional Key Information 3 Standard Flute
Additional Key Information 4 High Helix
Shipping State Illinois
Package Size 2
Sold by Pieces 2
Performance Rating High Performance
Additional Key Information 2 Ball Nose
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Screw On
Single/Double End Single End
Dimension Description 0.472 x T08 x 0.354 x 0.650
End Of Tool Shape Ball Nose
Helix Angle 45°
Shank/Pilot Dia T08
Overall Len 0.6496 16.50MM
Length Of Cut 0.3543 9.00MM
Length Type Standard
Cutter Dia 0.4724 12.00MM
Machine Side Connection Size T08
Machine Side TUNGT08
Flutes/Inserts 2
Cutter Style Screw On Ball Inserts
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
