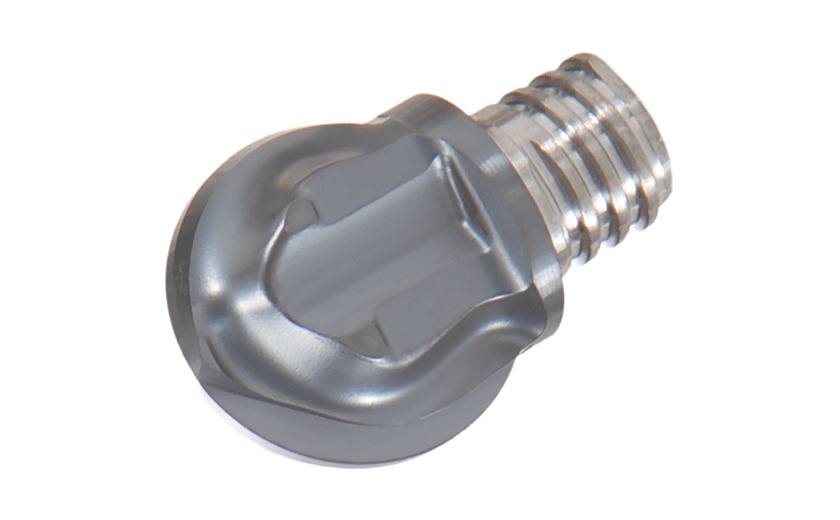

Tungaloy VBB0750L60-SG-U02S10 AH725 Dia 3/4 SH T10 LOC 0.6340 OAL0.7100End Mill,Replacable Head Standard Flute Standard Helix Carbide TiAlN Single End Ball NoseBall TUNG MEISTER

Part Number: TUN6863910 0.750 x T10 x 0.634 x 0.710
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1187983
$225.72
This product has a minimum quantity of 2

Description

TUNGALOY VBB0750L60-SG-U02S10 AH725 Standard Helix End Mill,Replacable Head Carbide TiAlN Ball Nose Ball Standard Flute Flutes 2 Single End TUNG MEISTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Screw On Spherical Ball Inserts
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 0.7100 18.03MM
Shank/Pilot Dia T10
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 0.6340 16.10MM
Geometry & Angles
Helix Angle 0
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
