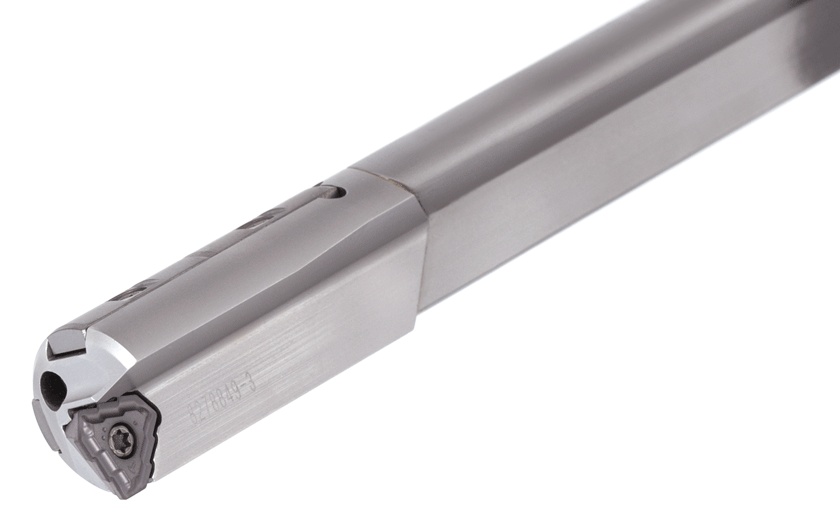

Picture of Tungaloy TRLGCH23.80X1830-U05 0.937" Drill body for gun Drill machine. For Drilling cross holes.

Tungaloy TRLGCH23.80X1830-U05 0.937" Drill body for gun Drill machine. For Drilling cross holes.

Part Number: TUN4851630

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1131327
Vendor: Sussex Tool and Supply
$2,069.45
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Gun Drill, Indexable Drill
Made In USA No
Cutting Edge Definition Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Tool Material Steel
Machine Side (Toolpost) BBAR1.2500, WELDON1.2500
Machine Side (Toolpost) Connection Type Boring Bar, Weldon
Overall Length 72.1810 1833.40MM
Shank Or Pilot Diameter 1.2500 31.75MM - 1-1/4
Family Group Deep-Tri-Drill
Coolant Thru Thru Coolant
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Tool Diameter 0.9370 23.80MM
Flutes Or Inserts 1
Type of Tool Drill
Flute Length 68.0080 1727.40MM
Cut Diameter Min 0.9370 23.80MM
Diameter Deep 24.0x Dia
Gun Drill Component Multi Insert Drill
